Azure Advent Calendar 2019 – Azure Information Protection

Exploring Azure MFA sign-in failures using Log Analytics

Most IT admins, pros and end users from organizations that use Office 365 and Azure AD will by now have heard about the big Azure MFA outage on Monday November 19. When something like this happens, it is important to get insights on which users that were affected, and in what type of scenarios they most experienced the problem. Microsoft MVP Tony Redmond wrote a useful blog post (https://office365itpros.com/2018/11/21/reporting-mfa-enabled-accounts/) on how to report on possible/potentially affected and MFA enabled users, and how to disable and re-enable those users. But many organizations are now using Conditional Access policies using Azure AD Premium, so this will be of limited help for those.

If I could wish one thing from Microsoft for Christmas this year, it would be to be able to manage MFA and Conditional Access policies with Azure AD PowerShell and Microsoft Graph! Admins could then run “break-the-glass” administrative users (or even “break-the-glass service principals”) to disable/re-enable policies when big MFA outages happens. A good CA policy design, trusting compliant devices and secure locations could also go a long way in mitigating such big outage problems.

Tony’s blog post made me think about the feature I recently activated, on integrating Azure AD Activity Logs to Azure Log Analytics, you can read more about this here: https://gotoguy.blog/2018/11/06/get-started-with-integration-of-azure-ad-activity-logs-to-azure-log-analytics/

By exploring the Sign-in logs in Log Analytics I could get some more insights into how my organization was affected by the MFA outage on November 19. Please see the above blog post on how to get started setting up this integration, the rest of this blog post will show some sample queries for the SigninLogs.

Querying the SigninLogs for failed and interrupted sign-ins

All the queries seen below are shown in screenshot images, but I have listed all them for you to copy at the end of the blog post.

First I can take a look at the SigninLogs for the specific day of 19th November, and the grouping on the result type and description of the sign-in events. For example I can see that there is a high number of event 50074: User did not pass the MFA challenge. Interestingly there is also a relatively high number of invalid username or password, that could be a separate issue but could also be that users that fails MFA sign-ins tries to log in again thinking they had wrong password first time.

Changing that query a little, I can exclude the successful sign-ins (ResultType 0), and sort on the most count of failures. Two of the events of most interest here is 50074 and 50076:

In this next query I focus on the “50074: User did not pass the MFA challenge” error. By increasing the time range to last 31 days, and adding a bin(TimeGenerated, 1d) to the summarize group, I’ll be able to see the count of this error on each day in the last month. This will give me a baseline, and we can see that on the 19th this number spikes. I have added a render to timechart for graphical display. There are also some other days where this number increases, I can look into more insights for that if I want as well, but for now I will focus on the 19th.

Back to the time range of the 19th of November, I can modify the summarize to group by each hour, by using bin(TimeGenerated, 1h). This will show me how the problems evolved during the day. Must errors occurred about 10 am in the morning:

Lets look at some queries for how this error affected my environment. First I can group on the Users and how many errors they experience. Some users were really persistent in trying to get through the MFA error. I have masked the real names. We also see some admin accounts but admins quickly recognized that something was wrong, and actively sought information on the outage. By midday most users were notified on the on-going outage and the number of errors slowly decrease during the day.

In this next query, I group on the Apps the users tried to reach:

And in this following query, what kind of Client App they used. It would be normal that Browser is quite high, as mobile apps and desktop clients are more likely to have valid refresh tokens.

In this query I can look into the device operating system the users tried to sign in from:

2018-11-21_22-05-27

In the following query I can look at which network the users tried to log in from, by identifying IP address:

And in this query we can get more location details from where users tried to sign in:

2018-11-21_22-07-17

Summary

Querying Log Analytics for Sign-in events as shown above can provide valuable insights into how such an outage can affect users. This can also give me some input on how to design Conditional Access policies. Querying this data over time can also provide a baseline for normal operations in your environment, and make it easier to set alert thresholds if you want to get alerts when number of failures inside a time interval gets higher than usual. Using Azure Monitor and action groups you can be pro-active and be notified if something similar should occur again.

Here are all the queries shown above:

// Look at SigninLogs for a custom date time interval and group by sign in results
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| summarize count() by ResultType, ResultDescription

// Exclude successful signins and format results with sorting
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType != "0"
| summarize FailedSigninCount = count() by ResultDescription, ResultType
| sort by FailedSigninCount desc

// Look at User did not pass the MFA challenge error last month to see trend
// and present to line chart group by each 1 day
SigninLogs
| where TimeGenerated >= ago(31d)
| where ResultType == "50074"
| summarize FailedSigninCount = count() by ResultDescription, bin(TimeGenerated, 1d)
| render timechart

// Look at User did not pass the MFA challenge error on the MFA outage day
// and present to line chart group by each 1 hour to see impact during day
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by ResultDescription, bin(TimeGenerated, 1h)
| render timechart

// Look at User did not pass the MFA challenge error on the MFA outage day
// and group on users to see affected users
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by UserDisplayName
| sort by FailedSigninCount desc

// Look at User did not pass the MFA challenge error on the MFA outage day
// and group on Apps to see affected applications the users tried to sign in to
SigninLogs
| where TimeGenerated  between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by AppDisplayName
| sort by FailedSigninCount desc

// Look at User did not pass the MFA challenge error on the MFA outage day
// and group on client apps to see affected apps the users tried to sign in from
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by ClientAppUsed
| sort by FailedSigninCount desc

// Look at User did not pass the MFA challenge error on the MFA outage day
// and group on device operating system to see affected platforms
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by tostring(DeviceDetail.operatingSystem)
| sort by FailedSigninCount desc

// Look at User did not pass the MFA challenge error on the MFA outage day
// and group on IP address to see from which network users tried to sign in from
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by IPAddress
| sort by FailedSigninCount desc

// Look at User did not pass the MFA challenge error on the MFA outage day
// and group on users location details to see which country, state and city users tried to sign in from
SigninLogs
| where TimeGenerated between(datetime("2018-11-19 00:00:00") .. datetime("2018-11-19 23:59:59"))
| where ResultType == "50074"
| summarize FailedSigninCount = count() by tostring(LocationDetails.countryOrRegion), tostring(LocationDetails.state), tostring(LocationDetails.city)
| sort by FailedSigninCount desc

Azure MFA Report Dashboard in Azure Portal–The Good, The Bad and The Ugly

1 Reply

If you are working with EMS and implementing Azure AD, Intune, MDM, MAM, Information Protection and more, you can build yourself some great dashboards in the Azure Portal using tiles and pin blades to your customized dashboard. This is an example from my own workplace:

Often when I work with projects implementing Identity & Access, Conditional Access and Azure MFA, I wish I could have a dashboard to report on MFA registration, and be able to pin that to my EMS dashboard as shown above.

It might be in the future that Azure MFA registrations and methods will be native in the portal, but for now this information have to be retreived in another way. In this blog post I will show you how you can set up a solution for showing this information. I will use the Markdown Tile from the gallery for displaying this information, and in the end it will look like this:

I referred in the title of this blog post to the good, the bad and the ugly, and by that I mean the process of setting this up, because it starts easy enough in the beginning but it will get more “ugly” in the end 😉

The Good – Setting up the Markdown Tile

I will use the Markdown Tile for the content in my customized dashboard in my Azure Portal. The first part is easy to set up, just click Edit and find the Markdown tile from the gallery, as shown below:

Drag the tile to a place you want it on your dashboard, and the Edit the title, subtitle and content as prompted:

There is a sample content provided, other than that you can write your own markdown. I will not get into details on markdown format here, there is a lot of good guides for learning the format, for example this: https://guides.github.com/features/mastering-markdown/. I will however provide you with a sample for reporting MFA registrations and default methods. This is how I set up my markdown tile:

And here is a link to my github repository where you can get the complete MFAReport.md file sample:

https://github.com/skillriver/AzureMFADashboard/blob/master/MFAReport.md

Now we need to fill that markdown tile with some real Azure AD MFA report data to report on.

The Bad – PowerShell Script for getting MFA registration and methods to Markdown

So the “bad” news is that we are reliant on running some Azure AD PowerShell commands for getting user details for MFA registration and methods. For now we are also reliant on the Azure AD v1 PowerShell (MSOnline) Module, as the new v2 AzureAD Module does not yet have any methods to get MFA authentication data. We cannot use the Microsoft Graph API either to get MFA user data, but I expect that to change in the future.

So lets look at the script I use, and after authenticating and connecting to Azure AD in my tenant with Connect-MSOLService, I will run the following commands to get details from each user where there has been configured one or more StrongAuthenticationMethods, and Group on those methods and save the results to a hash table. The results are stored in the $authMethodsRegistered object variable. Similarly I run the command once more, filtering on only showing the methods that are set to default for each user, and save to the $authMethodsDefault variable.

# Connect to MSOnline PowerShell (Azure AD v1)
Connect-MsolService

# Get MFA Methods Registered as Hash Table
$authMethodsRegistered = Get-MsolUser -All | Where-Object {$_.StrongAuthenticationMethods -ne $null} | Select-Object -Property UserPrincipalName -ExpandProperty StrongAuthenticationMethods `
| Group-Object MethodType -AsHashTable -AsString

# Get Default MFA Methods as Hash Table
$authMethodsDefault = Get-MsolUser -All | Where-Object {$_.StrongAuthenticationMethods -ne $null} | Select-Object -Property UserPrincipalName -ExpandProperty StrongAuthenticationMethods `
| Where-Object {$_.IsDefault -eq $true} | Group-Object MethodType -AsHashTable -AsString

# Create a Custom Object for MFA Data
$authMethodsData = New-Object PSObject
$authMethodsData | Add-Member -MemberType NoteProperty -Name AuthPhoneRegistered -Value $authMethodsRegistered.TwoWayVoiceMobile.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name AuthPhoneAppRegistered -Value $authMethodsRegistered.PhoneAppOTP.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name OfficePhoneRegistered -Value $authMethodsRegistered.TwoWayVoiceOffice.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name AlternatePhoneRegistered -Value $authMethodsRegistered.TwoWayVoiceAlternateMobile.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name OneWaySMSDefault –Value $authMethodsDefault.OneWaySMS.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name PhoneAppNotificationDefault –Value $authMethodsDefault.PhoneAppNotification.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name PhoneAppOTPDefault –Value $authMethodsDefault.PhoneAppOTP.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name TwoWayVoiceMobileDefault –Value $authMethodsDefault.TwoWayVoiceMobile.Count
$authMethodsData | Add-Member -MemberType NoteProperty -Name TwoWayVoiceOfficeDefault –Value $authMethodsDefault.TwoWayVoiceOffice.Count

# Write to Markdown file
"## MFA Authentication Methods`n" | Set-Content .\MFAReport.md -Force -Encoding UTF8
"### Registered`n" | Add-Content .\MFAReport.md -Encoding UTF8
"The following methods has been registered by users:`n" | Add-Content .\MFAReport.md -Encoding UTF8
"| Method | Count |" | Add-Content .\MFAReport.md -Encoding UTF8
"|:-----------|:-----------|" | Add-Content .\MFAReport.md -Encoding UTF8
"| Authentication Phone | " + [string]$authMethodsData.AuthPhoneRegistered + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| Phone App | " + [string]$authMethodsData.AuthPhoneAppRegistered + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| Alternate Phone | " + [string]$authMethodsData.AlternatePhoneRegistered + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| Office Phone | " + [string]$authMethodsData.OfficePhoneRegistered + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"" | Add-Content .\MFAReport.md -Encoding UTF8
"### Default Method" | Add-Content .\MFAReport.md -Encoding UTF8
"The following methods has been configured as default by users:" | Add-Content .\MFAReport.md -Encoding UTF8
"" | Add-Content .\MFAReport.md -Encoding UTF8
"| Method | Count |" | Add-Content .\MFAReport.md -Encoding UTF8
"|:-----------|:-----------|" | Add-Content .\MFAReport.md -Encoding UTF8
"| OneWay SMS | " + [string]$authMethodsData.OneWaySMSDefault + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| Phone App Notification | " + [string]$authMethodsData.PhoneAppNotificationDefault + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| Phone App OTP | " + [string]$authMethodsData.PhoneAppOTPDefault + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| TwoWay Voice Mobile | " + [string]$authMethodsData.TwoWayVoiceMobileDefault + " |" | Add-Content .\MFAReport.md -Encoding UTF8
"| TwoWay Voice Office Phone | " + [string]$authMethodsData.TwoWayVoiceOfficeDefault + " |`n" | Add-Content .\MFAReport.md -Encoding UTF8
"Last reported " + [string](Get-Date) | Add-Content .\MFAReport.md -Encoding UTF8

"" | Add-Content .\MFAReport.md

The complete PowerShell script can be found at my GitHub repository here:

https://github.com/skillriver/AzureMFADashboard/blob/master/MFAStrongAuthenticationUserReport.ps1

So now we have a script where we can get MFA authentication details for each user and create a markdown file that we can use in the tile in the Azure Portal custom dashboard. But it is all a manual process now, and it works fine for an ad hoc update. If we want to automate however, we have to get into the “ugly” stuff 😉

The Ugly – Automating Markdown creation and update Dashboard

This part requires multiple steps. First we need to schedule and run the PowerShell commands from above. Then we need to find a way to update the customized dashboard tile with the updated markdown file. To summary, this is what we need now:

Schedule the PowerShell script to run automatically. We can use Azure Automation for that.
Programmatically change the markdown tile in the customized dashboard. We can use Azure Resource Manager Rest API for that.

Lets get into the Azure Automation solution first. To run a PowerShell script I will need to create a Runbook, and in that Runbook I need to authenticate to Azure AD. I can define a Credential Asset with a username and password for a global admin user, but I like to use the least privilege possible, and besides that all my global admins are either protected by Azure AD PIM and/or MFA, so that won’t work. I prefer to use a service principal whereever possible, but after testing extensively with Connect-MSOLService that is not supported either.

So I tested with a dedicated Azure AD credential account, first by only adding the user to the Directory Readers role. I was able to list all users with Get-MSOLUser, but not any StrongAuthentication info. Neither did it work with Security Readers. In the end I added the user account to User Administrator role in Azure AD, and I was successful getting StrongAuthentication methods.

So, in my automation accont I will add or reuse my credentials:

Next, I will create a new PowerShell script based Runbook, basically I will use the PowerShell script from earlier in the blog, but with a couple of added parameter and getting the credential using the Get-PSAutomationCredential method. This is how it looks, you will get link to the complete script later:

And after testing, I can see that I successfully will get the MFAReport.md content (added a Get-Content .\MFAReport.md at the end to display the output):

Now that we have a solution for running the PowerShell script and generating the markdown file, the next part is how to update that data in the custom dashboard. And for that we need to look into programatically changing Azure Portal dashboards. There is a good resource and starting point for that in this article: https://docs.microsoft.com/en-us/azure/azure-portal/azure-portal-dashboards-create-programmatically.

First you need to share the custom dashboard, remember to include the markdown tile we set up in the first part of this blog post. At the top in the portal dashboard, select the Share button:

By sharing the dashboard will published as an Azure resource. Specify a name, select the subscription and either use the default dashboard resource group or select an existing one:

Go to Resource Explorer in the Portal:

Navigate to Subscriptions, Resource Groups, and find the resource group and resource containing the custom dashboard. From there you will be able to see the JSON definition of the dashboard and specifically the markdown tile containing the content we want to update:

So for next process now we need to copy this complete JSON definition containing all your tiles including the markdown tile. Locally on your computer, create a .json file in your favorite JSON editor, I use Visual Studio Code for this, and paste in the content. I have named my file DeploymentTemplateMFAReport.json.

Now we need to change this template to be ready for deployment, and for that we need to add or change a couple of things. First, in the start of the JSON file, add schema and versioning, and parameters, variables and resources section like I have shown below in line 1-17:

I have chosen to use 3 parameters, the markdown content itself, and name of the dashboard and the title of the dashboard.

Next, find the tile for the markdown content, and change the content value to the value of the parameter, like I have done at line 113 here:

And last, at the end of the json template, add and change the following settings, I have used my parameters for the dashboard name and the dashboard title here in the lines 401-411:

My deployment template for the customized dashboard is now completely general and can be used in every environment. In fact you are welcome to borrow and use my template from above her, I have included it in my github repository:

https://github.com/skillriver/AzureMFADashboard/blob/master/DeploymentTemplateMFAReport.json

Working locally in my Visual Studio Code editor, I can now test the deployment using Azure PowerShell, as shown below and described with these simple steps:

Connect to Azure Resource Manager and select the Subscription
Specify a variable for the Resource Group you want to deploy to
The MFAreport.md file (which we created earlier) need some converting to JSON format, I’m removing all espace characters and any uneeded special characters
Specify variable names your environment for name and title for the dashboard
Deploy the custom dashboard to the resource group

However, now that we can test the deployment, I want to schedule a deployment using Azure Automation, and I will continue on my previous runbook from before. But first we need to set up some connections for authenticating to Azure and some variables.

I Azure Automation we can create an Azure Run As Account, this will also create a service principal. If you navigate to your Automation Account in the Azure Portal, and go to the section called Run as accounts, you can create an Azure Run As Account automatically, as I have done here:

If I look more closely at this generated Run As Account, I can see details for Azure AD App Registration, Service Principal, Certificate and more. This account will also automatically be assigned Contributor role for my Azure Subscription. If you want more control over Azure Run As Accounts, you can create your own as described in the following article: https://docs.microsoft.com/en-us/azure/automation/automation-create-runas-account

I will use this Azure Run As account in my environment to deploy the dashboard resource, I’ll just need to make sure the account has contributor access to the resource group. Next I will set ut a few variables under the Variables section for my Automation Account, I will use these variables when I deploy the resource:

Now we are ready to finally put together the complete Runbook and test it. You will have the complete link later in the blog post, but I will share some screenshots first:

After I’ve connected with Connect-MSOLService I’m creating a variable for the markdown content, so I’ve changed from earlier when I saved a .md file temporarily, now I just adding lines using the newline special character (`n):

The next part is for logging in to Azure (using the Azure Run As Account mentioned above), and then getting my variables ready for deployment:

Then I convert the markdown content to Json format, and removing any escape characters that I don’t need:

And then deploy the dashboard resource with parameters for markdown content and dashboard name & title. Note that I’m using my deployment template as a source from my github repository via the TemplateUri property:

You can use any TemplateUri you want, for example from a more private source like a storage account blob etc.

Testing the Runbook gives the following output, which shows it was successful:

When I now go and refresh the dasboard in the portal, I can see that the markdown tile has been updated:

That leaves me with just publishing and scheduling the runbook:

When creating a new schedule specify a name and recurrence:

Link the schedule to the runbook and any needed parameters, I have to specify my credential that are allowed to Connect-MSOLService:

That concludes this lengthy blog post. The script will now run regularly and update my custom markdown tile with MFA report data.

Here is the link to the PowerShell script used in my Azure Automation runbook, enjoy your MFA Reporting!

https://github.com/skillriver/AzureMFADashboard/blob/master/MFAStrongAuthenticationUserReportAutomation.ps1

Get Started with Group Based Licensing in the Azure AD Portal!

2 Replies

Just the other day I wrote a blog post on how you could use Azure AD v2 PowerShell and Dynamic Groups based on extension attributes to set EMS license plans for your cloud and on-premises users, https://gotoguy.blog/2017/02/17/assign-ems-license-with-azure-ad-v2-powershell-and-dynamic-groups/.

And now, User and Group based licensing in the Azure AD Portal has been added in Preview! This is a long awaited feature, and works will all of your purchased services, either its EMS, Office 365, Dynamics 365, PowerBI and many more.

Let’s take a quick look on the functionality. Based on the above referenced blog post, I will use the same Dynamic Groups, where membership is defined based on values for extension attributes. So I already have configured Dynamic Groups for EMS E3, EMS E5and Office 365:

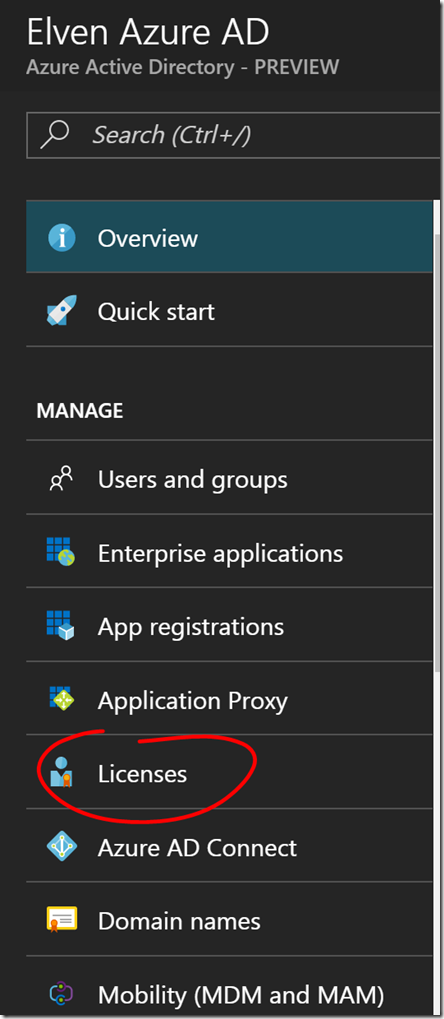

The new Licensing functionality are now added to the Azure AD Preview at https://portal.azure.com:

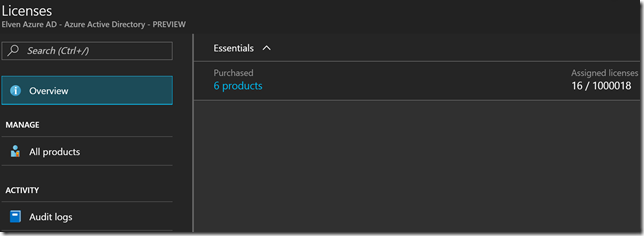

When I go to the Licenses blade I get a quick overview over my purchased products and total of assigned licenses:

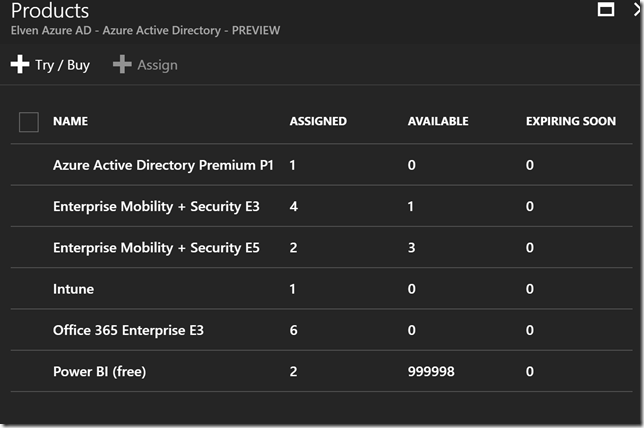

When I go to All products, a list of my product subscriptions are shown, with an overview of licenses assigned, available and if any are expiring soon:

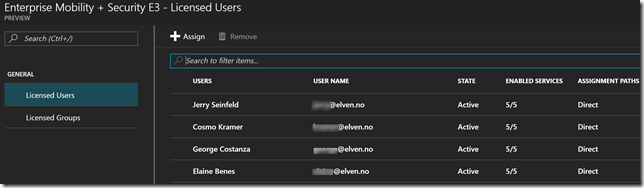

If I go into one of the products, I will see the already existing licensed users, which in my case are Direct assigned (I did that with the PowerShell script in the previous blog post).

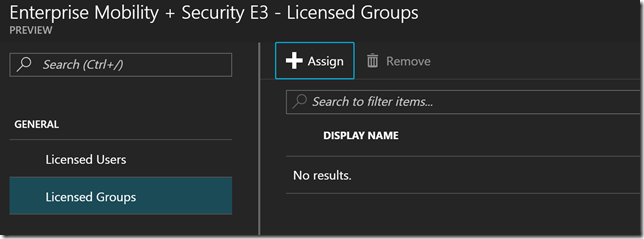

Let’s configure Licensed Groups:

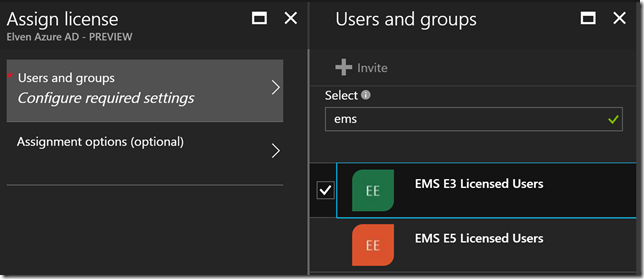

Click + Assign to add a group to License, I will use my Dynamic Group:

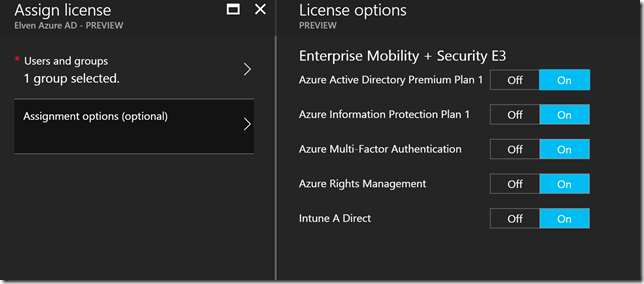

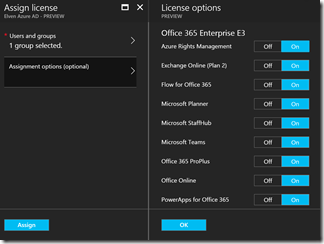

Then, at Assignment options, I can optionally configure individual services:

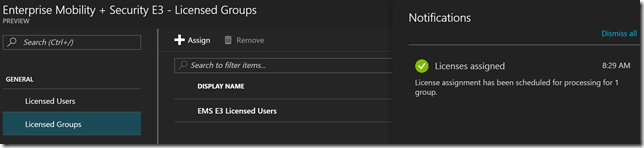

After clicking OK and Assign, the group has been added for processing:

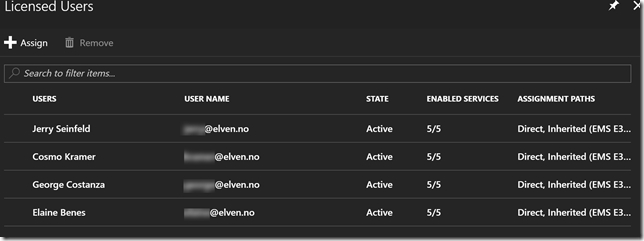

And if I look at Licensed Users again after the change has been processed, I will see that uses now have an inherited license based on the group. Of course, the Direct assignments added by PowerShell are not removed, so I will have to remove those later.

In the same way I can add my Office 365 and EMS E5 Dynamic Groups:

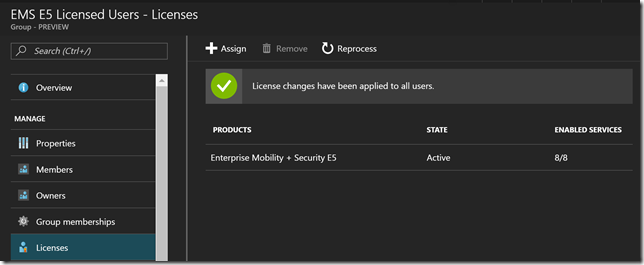

By the way, you can go into each group after and look at License status, and Reprocess if needed.

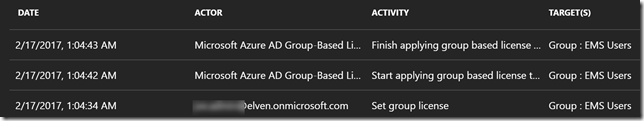

At the Group’s Audit Log we can track the license activity as well:

So there we have it, a long sought after functionality that I’m sure many organizations will have good use for. As this is in Preview, some more testing are should be done before setting it directly into production, and if I find anything special I will update this blog post.

I am sure there will be an announcement and blog post at the Enterprise Mobility + Security blog shortly also: https://blogs.technet.microsoft.com/enterprisemobility/

Publish the Cireson Configuration Manager Portal with Azure AD Application Proxy

1 Reply

Cireson will soon be releasing a new web based Portal for System Center Configuration Manager, http://go.cireson.com/cireson-portal-for-configmgr. This would make it possible to access a lot of functionality for Configuration Manager anywhere with a web browser. The Cireson Portal for Configuration Manager must be installed locally, either on the Configuration Manager server or on a server close to the Configuration Manager server and database.

This makes this an ideal candidate for Azure AD Application Proxy publishing, as we can make it available as an Azure AD App with all the features and possibilities that this can give, including:

Azure AD Preauthentication and Single Sign-On to the Portal
Assigning Users and Groups
Conditional Access
Easy access via the users Access Paneler or the Office 365 App Launcher

We will look into all this in a two-part blog post! This will also be a good opportunity to use the new management experience for the preview of Azure Active Directory management in the Azure Portal, https://portal.azure.com.

Part 1: Publish the Cireson Configuration Manager Portal with Azure AD Application Proxy
Part 2: Conditional Access and Self Service for the published Configuration Manager Portal Application (link when available)

Enable Azure AD Application Proxy

I you want to publish applications with Azure AD Application Proxy, there are some requirements:

You need an Azure AD tenant configured with licenses for Azure AD Premium P1 or EMS E3 Suite. Actually it is enough with Azure AD Basic licenses for AAD App Proxy, but if you want to configure Conditional Access you will need at least Premium P1. More on that later.
If you want to enable SSO for your internal users you have to synchronize those users via Azure AD Connect.
You have to Enable Azure AD Application Proxy for your AAD tenant directory, and download and install one or more Application Proxy Connectors.

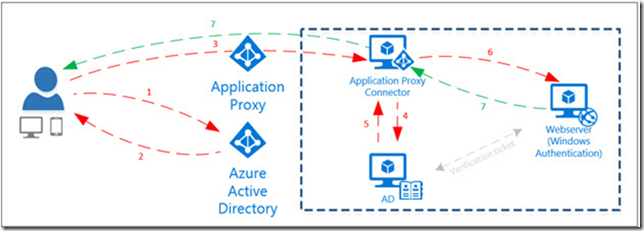

The diagram below shows the communication flow from when the user launch the published application, authenticates to Azure AD, and then via the Application Proxy Connector installed internally access the web based portal. Single Sign-On is achieved via the Application Proxy Connector authentication on behalf of the user via Kerberos Constrained Delegation.

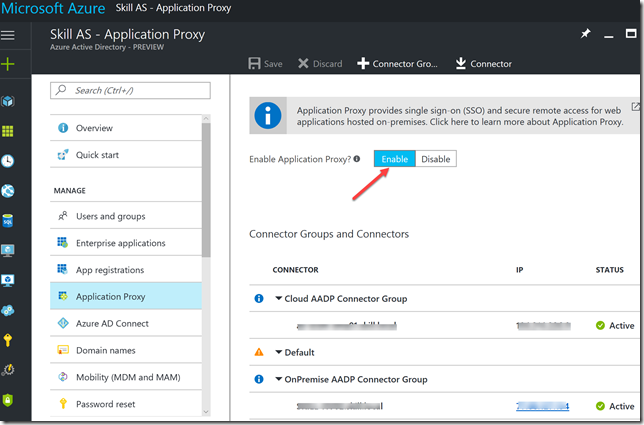

So the first step is to go to the Azure Portal, and open the Azure Active Directory blade, which at the moment is in preview. From there go to the Application Proxy section and make sure that the Application Proxy is enabled as shown below:

In the image above we also see that there already are some Azure AD App Proxy Connectors installed and active. They are also configured in two different groups, and these groups are used later when we publish the application. At the top of the blade, you can download a new Connector installation file.

Download and install Application Proxy Connector

The Application Proxy Connector must be installed on a server that can reach the internal web portal server. In this case I want to install the Connector locally on the Configuration Manager server that also hosts the Cireson Portal for Configuration Manager. I could have used one of my existing connectors, but they are installed respectively on an Azure VM environment and on a separate network from our Configuration Manager environment.

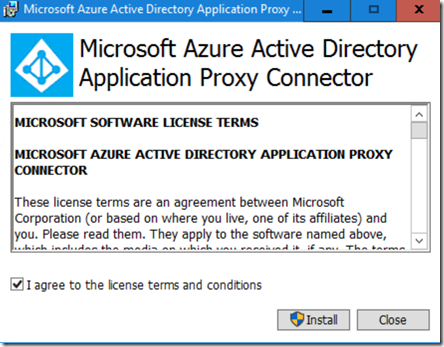

Following the download link from above, I download and start the Application Proxy Connector installation on my SCCM server.

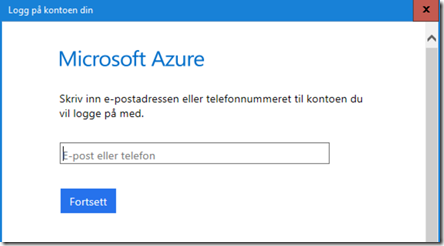

During installation you must provide a global administrator admin account:

After finishing the installation of the connector, we will se the new connector with the server name in the portal.

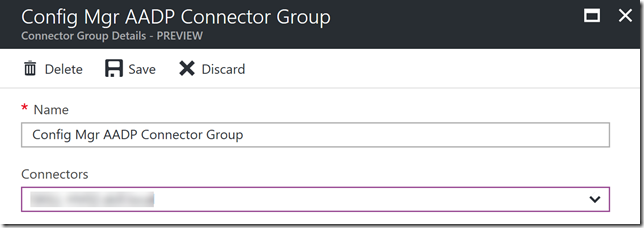

We can now create a group, and place the connector installed in the group:

Publish the Configuration Manager Portal App

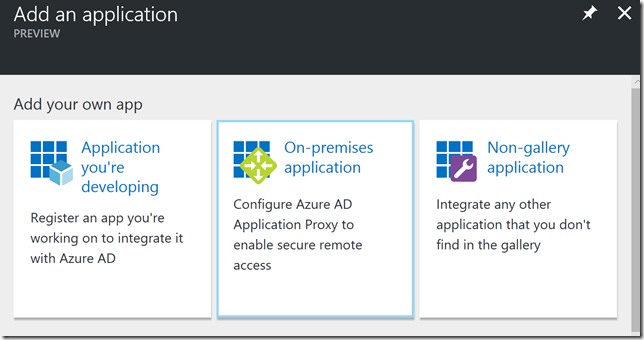

To start publishing the Configuration Manager Portal Application, go to Enterprise Applications and select Add, and from the Add your own app section select to add an “On-premises application”:

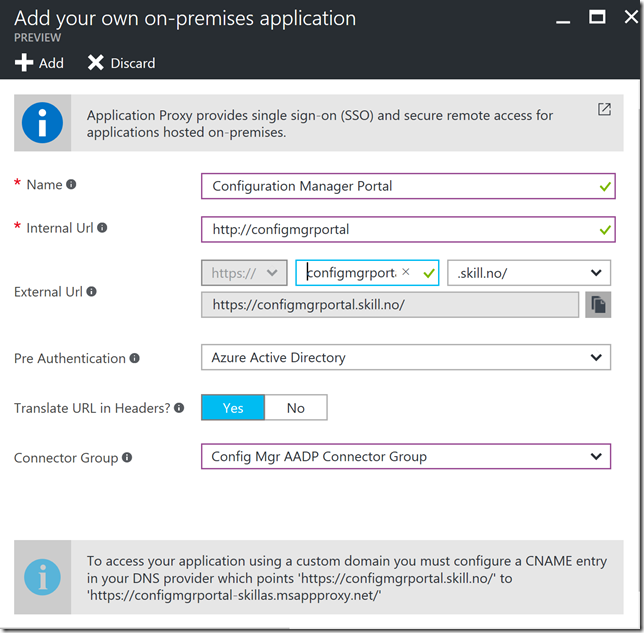

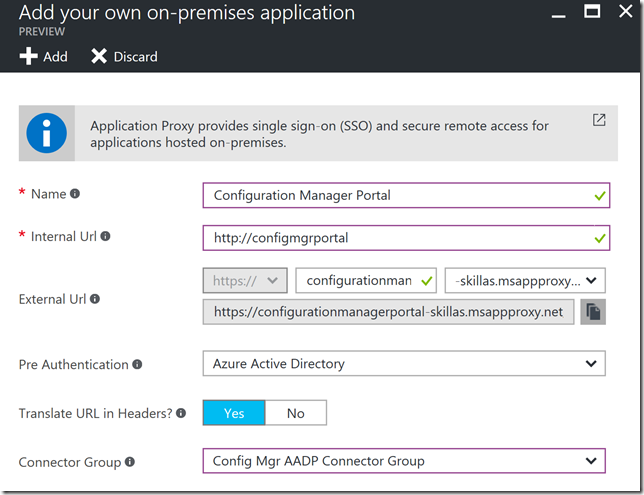

Next, specify the Name of the Application and the Internal Url. In this case I have installed it internally as http://configmgrportal. For External Url, you have a choice for the alias and domain. By default the alias will be the Application Name without spaces, appended with –<tenant name>.msappproxy.net.

You can change the domain to one of your verified domains, which I have done here together with changing the alias so that the External Url now will be https://configmgrportal.skill.no. By the way, you have to upload a SSL certificate if you want to use your own domain, either a wildcard certificate or a certificate with the appropriate FQDN. We will look at that later.

Note that I need to add a CNAME entry at my DNS provider as stated in the info box above. I will do that right now before I proceed.

I set Pre Authentication to Azure Active Directory, as I want everyone accessing the External Url to be a valid Azure AD user from my tenant. I also select to translate URL in headers, and select my previously configured App Proxy Connector Group.

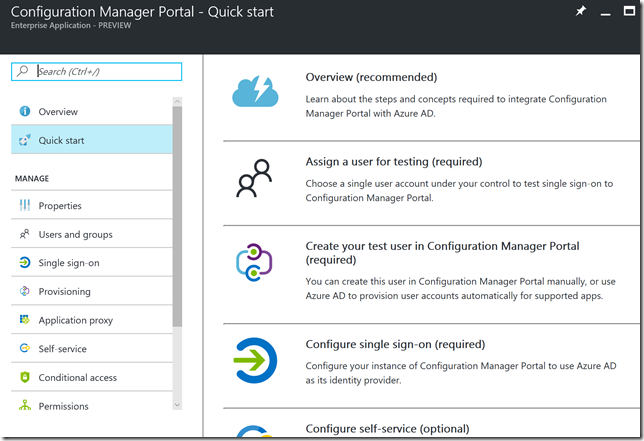

Press Add to add the application to the directory. After that you are presented with a Quick start menu like below:

First I go to Properties, and optionally you can upload a logo which I have done here, note also that User assignment is required is set to yes, this means that no user cannot access the published application until I have added users or groups to it.

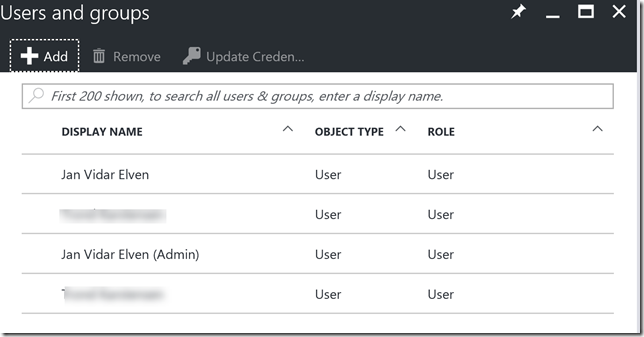

After saving I go to users and groups, and add some users to test the published application:

These users will now be able to launch the published application, but we have some more configuration to do first. As I want to have Single Sign-On configured for this application, I configure the following settings for Single Sign-On. I set the mode to Integrated Windows Authentication, meaning that the App Proxy Connector will impersonate any Azure AD authenticated user to the on-premises application via Kerberos constrained delegation.

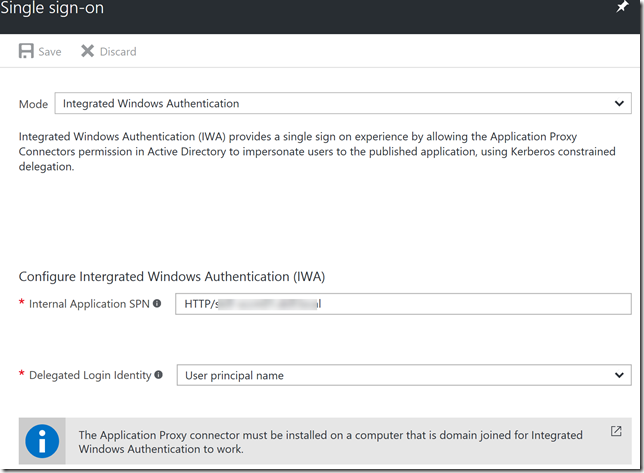

I also need to specify a internal SPN for the application, which will be HTTP/<fqdn-of-server>, where the server is where the internal web application is installed. I will also specify which delegated login identity, which in most cases will work fine with user principal name for synchronized federated users.

After configuring Single Sign-On settings, and if you elected to use your own domain name, you need to upload or specify an existing SSL certificate. Go back to Application Proxy settings and click to view or change certificate settings:

After saving this configuration, the required portal configuration for the application is now complete, but optionally we can configure self service and conditional access, We will get back to that later in part 2 of this blog post.

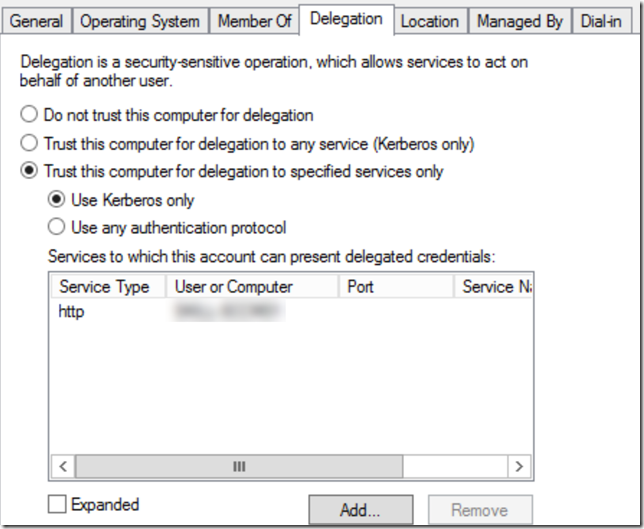

That leaves only one more step, and that is to configure kerberos delegation for the App Proxy Connector server. In your on-premises Active Directory, find the computer object for the server you installed the App Proxy Connector on, and go to Delegation, and select to trust this computer for delegation to specified services only, and for kerberos only adding the computer name and http service for the server where the internal web application is installed. This should med the same as the internal spn you configured in the portal earlier for Windows integrated authentication.

Testing Single Sign-On

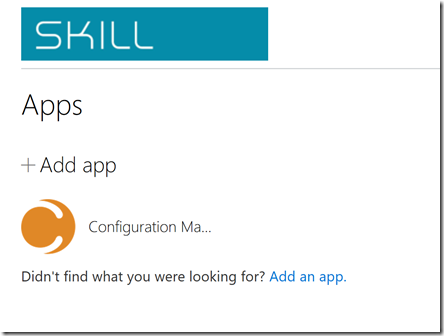

We can now test the application. Go to https://myapps.microsoft.com and log in with one of the assigned users. Among other published apps I will see the Configuration Manager Portal:

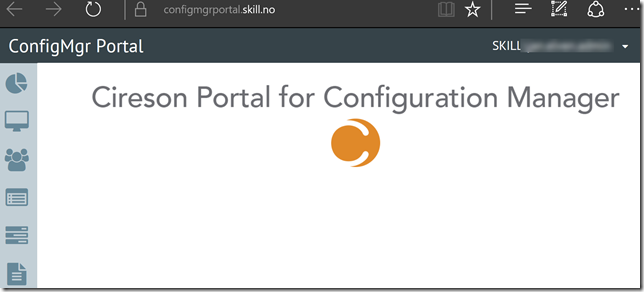

And if I launch it, I will see that I can access the Configuration Manager Portal, and I have been automatically signed in with my local AD user via Single Sign-On and Kerberos Constrained Delegation. I also see my url, https://configmgrportal.skill.no, which I can access directly if I want without going through the MyApps panel.

So now we have successfully published the Cireson Configuration Manager Portal with Azure AD Application Proxy, using SSO with Azure AD, and User Assignment so that only users that are pre-authenticated and assigned the application by Azure AD, will have access to it.

Stay tuned for part 2 of this blog post, where we will configure Conditional Access using Azure MFA and Device Compliance, and what Self Service functionality we have.

Working with Azure AD Extension Attributes with Azure AD PowerShell v2

8 Replies

In a recent blog post, https://gotoguy.blog/2017/02/17/assign-ems-license-with-azure-ad-v2-powershell-and-dynamic-groups/, I wrote about how to use extension attributes in local Active Directory and Azure AD, for the purpose of using these extension attributes for determine membership i Azure AD Dynamic Groups.

In the process of investigating my Azure AD users (synchronized and cloud based), I wanted to see how I could use Azure AD v2 PowerShell CmdLets for querying and updating these extension attributes. This blog post is a summary of tips and commands, and also some curious things I found. There is a link to a Gist with all the PowerShell Commands at the end of the blog post if you prefer to skip to that.

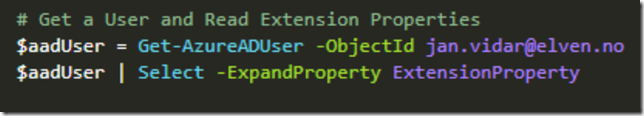

Lets start by looking into one user:

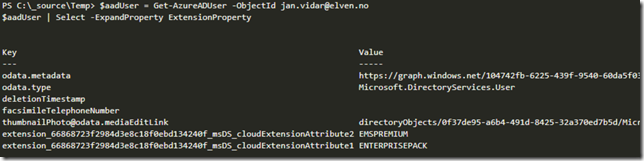

For my example user I have the following output:

In the above linked blog post, I wrote about using the msDS_cloudExtensionAttribute1 and 2 for assigning licenses, so I see those values and more.

I can also serialize the user object to JSON by using $aadUser.ToJson(), which also will show me the value of the extension attributes:

I can look into and explore the user object with Get-Member:

From there I can see that that the Extension Property, which is of type System.Collections.Generic.Dictionary supports Get and Set. So lets look into how to update those extension attributes. This obviously only work on cloud homed users, as synchronized users must be updated in local Active Directory. This series of commands shows how to add extension attributes for cloud users:

The next thing I thought about, was how can I make a list of all users with their extension attributes? I ended up with the following, where you either can get all users or make a filtered collection, and from there loop through and read any extension attributes:

When I look into my extended users list object, I can list the users and values with extension values:

So to some curios things I found. As explained in the blog post https://gotoguy.blog/2017/02/17/assign-ems-license-with-azure-ad-v2-powershell-and-dynamic-groups/, if you are running a Hybrid Exchange organization you would probably use extensionAttribute1..15 instead of the msDS_cloudExtensionAttribute. In another Azure AD tenant I tested on that, but using the commands above I never could list out the extensionAttribute1..15 on my users. I never found a way to validate and check those values, but if I created a Dynamic Group using for example extensionAttribute1 or 2, members would be populated! So it was obvious that the value was there, I just can’t find a way to check it.

I even tested on Graph API, but did not find any extensionAttribute there either, only msDS_cloudExtensionAttribute. For example by querying:

https://graph.microsoft.com/v1.0/users/<userid or upn>?$select=extension_66868723f2984d3e8c18f0ebd134240f_msDS_cloudExtensionAttribute2

I can see my extension value.

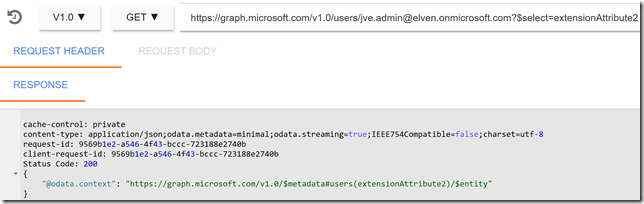

However, if I try: https://graph.microsoft.com/v1.0/users/<userid or upn>?$select=extensionAttribute2, I cannot see the value even I know it’s there.

Strange thing, hopefully I will find out some more on this, and please comment if you have any ideas. I will also ask this from the Azure AD team.

Here is the gist with all the commands:

	# Azure AD v2 PowerShell Module CmdLets for working with Extension Attribute Properties

	# Connect to Azure AD with Global Administrator
	Connect-AzureAD

	# Get a User and Read Extension Properties
	$aadUser = Get-AzureADUser -ObjectId <youruser>
	$aadUser \| Select -ExpandProperty ExtensionProperty

	# Serialize User Object to JSON
	$aadUser.ToJson()

	# Explore Object Properties
	$aadUser \| Get-Member

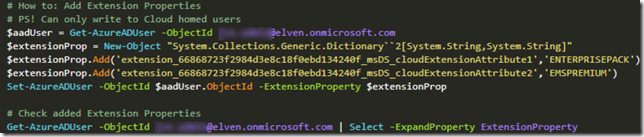

	# How to: Add Extension Properties
	# PS! Can only write to Cloud homed users
	$aadUser = Get-AzureADUser -ObjectId <yourclouduser>@elven.onmicrosoft.com
	$extensionProp = New-Object "System.Collections.Generic.Dictionary“2[System.String,System.String]"
	$extensionProp.Add('extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute1','ENTERPRISEPACK')
	$extensionProp.Add('extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute2','EMSPREMIUM')
	Set-AzureADUser -ObjectId $aadUser.ObjectId -ExtensionProperty $extensionProp

	# Check added Extension Properties
	Get-AzureADUser -ObjectId <yourclouduser>@elven.onmicrosoft.com \| Select -ExpandProperty ExtensionProperty

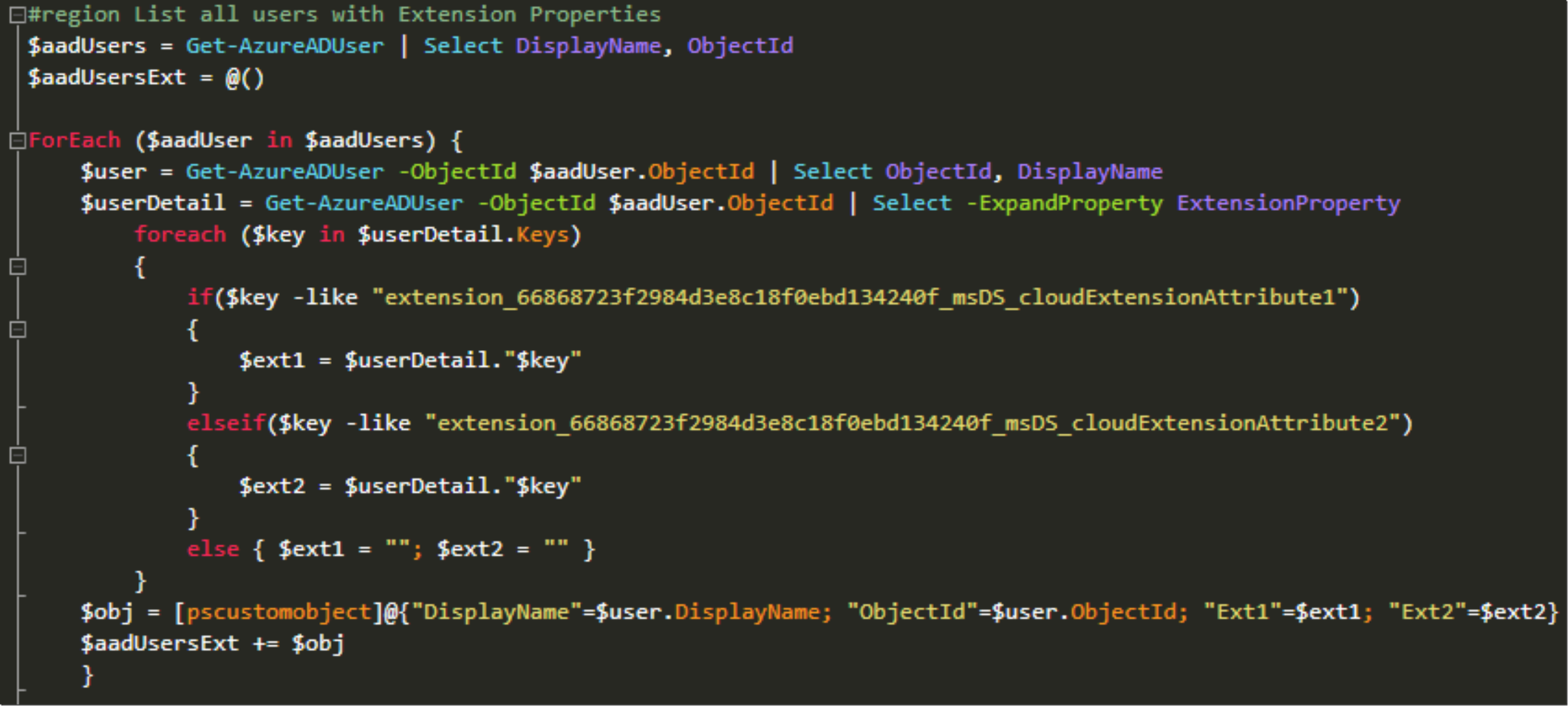

	#region List all users with Extension Properties
	$aadUsers = Get-AzureADUser \| Select DisplayName, ObjectId
	$aadUsersExt = @()

	ForEach ($aadUser in $aadUsers) {
	$user = Get-AzureADUser -ObjectId $aadUser.ObjectId \| Select ObjectId, DisplayName
	$userDetail = Get-AzureADUser -ObjectId $aadUser.ObjectId \| Select -ExpandProperty ExtensionProperty
	foreach ($key in $userDetail.Keys)
	{
	if($key -like "extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute1")
	{
	$ext1 = $userDetail."$key"
	}
	elseif($key -like "extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute2")
	{
	$ext2 = $userDetail."$key"
	}
	else { $ext1 = ""; $ext2 = "" }
	}
	$obj = [pscustomobject]@{"DisplayName"=$user.DisplayName; "ObjectId"=$user.ObjectId; "Ext1"=$ext1; "Ext2"=$ext2}
	$aadUsersExt += $obj
	}

	# List only users with values for extension attributes
	$aadUsersExt \| Where {$_.Ext1 -or $_.Ext2} \| FT

	#endregion

	# List all users
	$aadUsersExt

	# Serialize users and extension attributes to JSON
	$aadUsersExt \| ConvertTo-Json

view raw

AzureADExtensionProperty.ps1

hosted with ❤ by GitHub

Assign EMS License with Azure AD v2 PowerShell and Dynamic Groups

5 Replies

While we are waiting for support for group based licensing in the Azure AD Portal I have created this Azure AD v2 PowerShell solution for assigning EMS (Enterprise Mobility + Security) license plans using Azure AD v2 PowerShell module and Dynamic Groups.

The PowerShell CmdLets used here requires the Azure AD v2 PowerShell Module, which you can read about how to install or update here: https://gist.github.com/skillriver/35fba9647fbfbe3e99718f0ad734b241

Source of Authority, Attributes, Sync and Dynamic Groups

In my scenario I want to use extension attributes to automatically calculate membership using Dynamic Groups in Azure AD. The members of these groups will be assigned the EMS licenses.

Most organizations will have an on-premises Active Directory synchronizing to Azure AD, so the source of authority is important for where I set the value of the extension attributes, as I want my Dynamic Groups to calculate membership for both On-premise and Cloud based users (I have some Cloud based admin account I want to license as well).

So, lets take a look at my local Active Directory environment. If you have Exchange installed in your organization, you will have extended the schema with extensionAttribute1..15.

But in my case, I never have installed any versions of Exchange in my current environment, and only used Exhange Online, so I don’t have those attributes. Instead I have msDS-cloudExtensionAttribute1..20.

So I decided on using the following attributes locally in AD:

I have previously used ENTERPRISEPACK (SkuPartNumber for Office 365 E3) for licensing Office 365 E3 plans. In this scenario I will use the msDS-cloudExtensionAttribute2 for either EMS (SkuPartNumber for EMS E3) or EMSPREMIUM (SkuPartNumber for EMS E5).

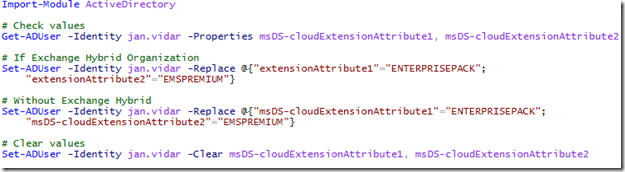

You can also use Active Directory PowerShell to set these values on-premises:

Note that if I had Exchange installed, I could just have used extensionAttribute1 and extensionAttribute2, and these would be automatically synchronized to Azure AD in an Exchange Hybrid deployment. However, in my case I need to manually specify the option for Directory extension attribute sync in Azure AD Connect:

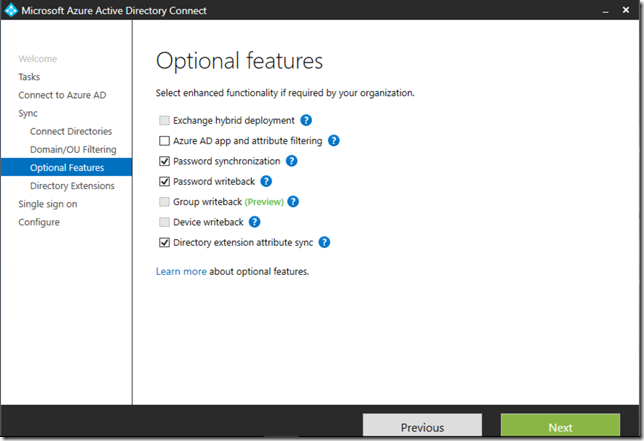

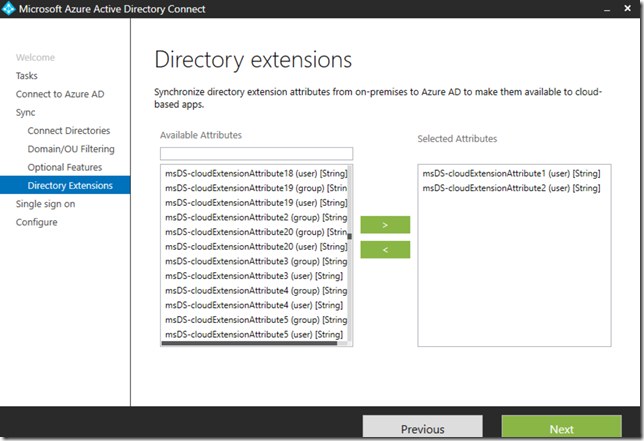

And then selecting to synchronize those two selected attributes:

After these Directory extensions are configured and synchronized to Azure AD, I can check these attributes with the following AAD v2 command:

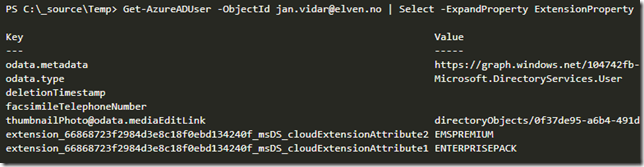

Get-AzureADUser –ObjectId <youruser> | Select -ExpandProperty ExtensionProperty

In my environment I will find these attributes:

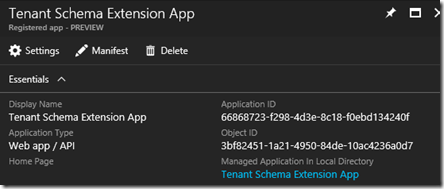

Note that the msDS_cloudExtensionAttribute1..2 has now been created in Azure AD for me, and been prefixed with extension_<GUID>_, where the GUID represent the Tenant Schema Extension App:

So now I know that my on-premises users with values for msDS_cloudExtensionAttribute1..2 will be synchronized to the extension attributes in Azure AD. But what about users that are source from Cloud? There are no graphical way to set these extension attributes, so we will have to do that with Azure AD v2 PowerShell. In my example I have a Cloud admin account I want to set this attribute extension for (scripts are linked later in the blog):

With that, I now have configured the users I want with the extension attribute values, and are ready to create the Dynamic Groups.

Creating Dynamic Groups for Assigning EMS Licenses

Earlier in the blog post I mentioned that I wanted to use the msDS_cloudExtensionAttribute2 for assigning either EMS E3 or EMS E5 licenses. If I run the following command, I get my Subscriptions, here listed by SkuId an SkuPartNumber. EMSPREMIUM refers to EMS E5, while EMS refers to the original EMS which is now E3.

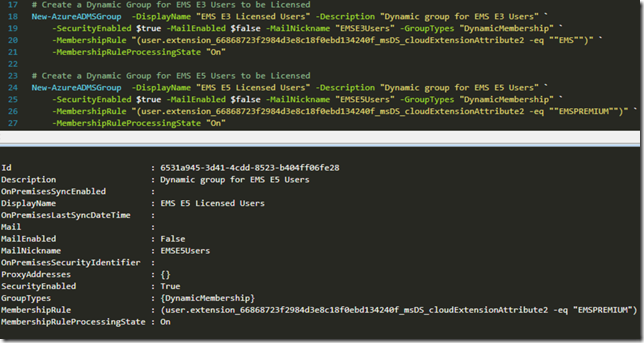

On that basis I will create 2 Dynamic Groups, one that looks for EMSPREMIUM and one that looks for EMS in the extension attribute. You can create Dynamic Groups in the new Azure AD Portal, or by running these PowerShell commands:

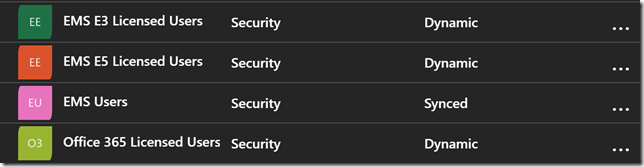

After a while memberships in these dynamic groups will be processed, and I can check members with the following commands:

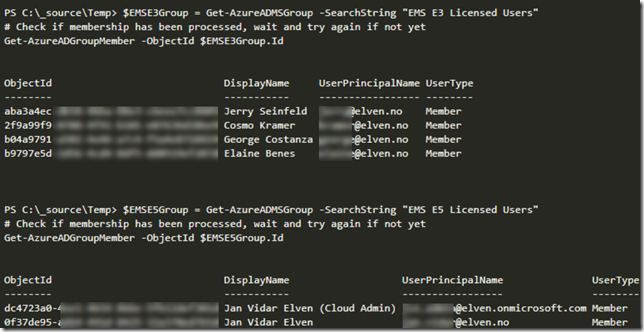

In my environment I will have this returned, showing users with membership in the EMS E3 and EMS E5 group respectively:

Before I proceed I will save these memberships to objects variables:

Assigning the EMS licenses based on group membership

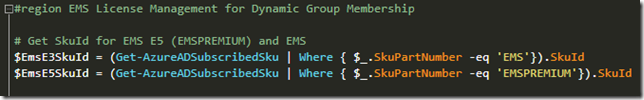

With users, attributes and dynamic groups membership prepared, I can run the actual PowerShell commands for assigning the licenses. I also want to make sure that any users previously assigned to another EMS license will be changed to reflect the new, so that they are not double licensed. Meaning, if a user already has an EMS E3 license, and the script adds EMS E5, I will remove the EMS E3 and vice versa.

The full script is linked below, but I will go through the main parts here first. First I will save the SkuId for the EMS subscriptions:

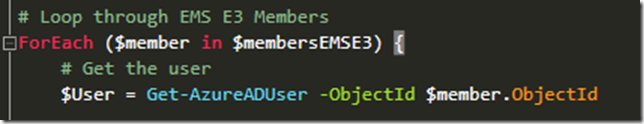

Then I will loop through the membership objects saved earlier:

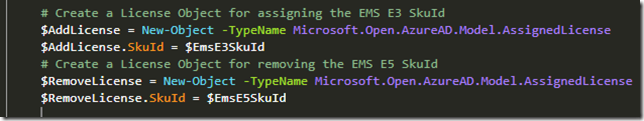

Next, create License Object for adding and removing license:

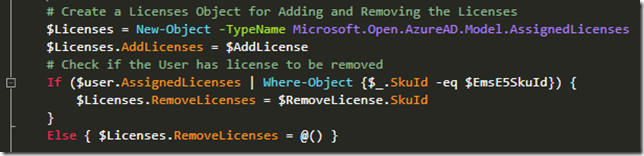

Then create a AssignedLicenses object, adding the AssignedLicense object from above. In addition, I check if the user has an existing EMS license to be removed, and if so add that SkuId to RemoveLicenses. If there are no license to remove, I still need to specify an empty array for RemoveLicenses.

And then, update the user at the end of the loop:

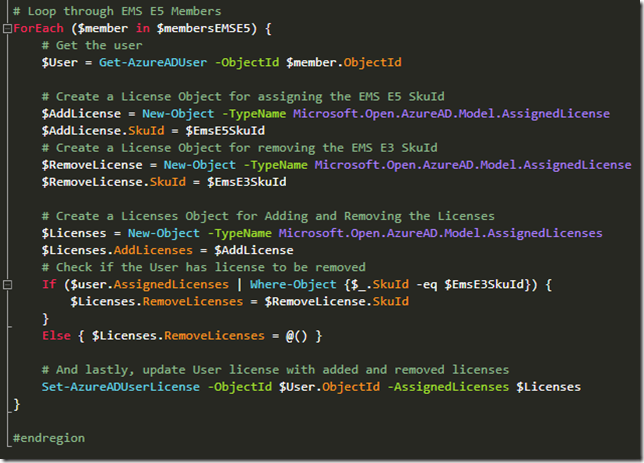

After looping through the EMS E3 members, a similar loop through EMS E5 members:

So to summarize, with this script commands you can assign either EMS E3 or E5 licenses based on user membership in Dynamic Groups controlled by extension attributes. In a later blog post I will show how we can consistenly apply these licenses, stay tuned!

Link to the full script is below:

	# PowerShell CmdLets for Assigning EMS Licenses with Azure AD v2 PowerShell Module
	# Read blog post for details: https://gotoguy.blog/2017/02/17/assign-ems-license-with-azure-ad-v2-powershell-and-dynamic-groups/

	# Connect to Azure AD with Global Administrator
	Connect-AzureAD

	# List Subscriptions

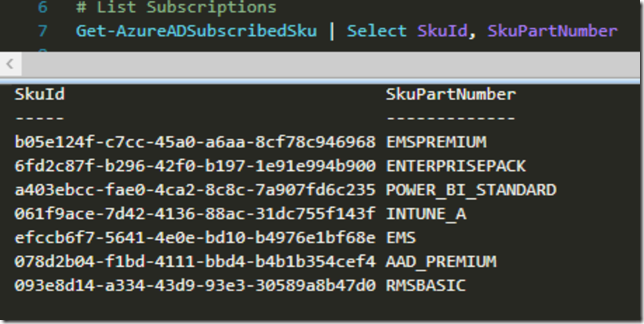

	Get-AzureADSubscribedSku \| Select SkuId, SkuPartNumber

	# EMS E3 license Service Plans
	$EMSlicense = Get-AzureADSubscribedSku \| Where-Object {$_.SkuPartNumber -eq 'EMS'}

	# EMS E5 license Service Plans
	$EMSpremiumlicense = Get-AzureADSubscribedSku \| Where-Object {$_.SkuPartNumber -eq 'EMSPREMIUM'}

	# Create a Dynamic Group for EMS E3 Users to be Licensed
	New-AzureADMSGroup -DisplayName "EMS E3 Licensed Users" -Description "Dynamic group for EMS E3 Users" `
	-SecurityEnabled $true -MailEnabled $false -MailNickname "EMSE3Users" -GroupTypes "DynamicMembership" `
	-MembershipRule "(user.extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute2 -eq ""EMS"")" `
	-MembershipRuleProcessingState "On"

	# Create a Dynamic Group for EMS E5 Users to be Licensed
	New-AzureADMSGroup -DisplayName "EMS E5 Licensed Users" -Description "Dynamic group for EMS E5 Users" `
	-SecurityEnabled $true -MailEnabled $false -MailNickname "EMSE5Users" -GroupTypes "DynamicMembership" `
	-MembershipRule "(user.extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute2 -eq ""EMSPREMIUM"")" `
	-MembershipRuleProcessingState "On"

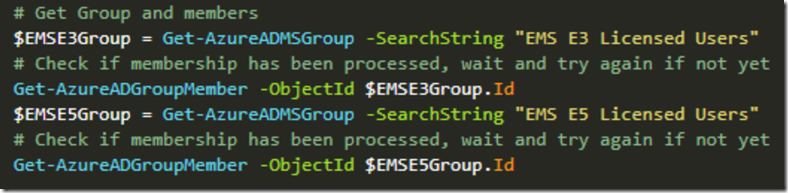

	# Get Group and members
	$EMSE3Group = Get-AzureADMSGroup -SearchString "EMS E3 Licensed Users"
	# Check if membership has been processed, wait and try again if not yet
	Get-AzureADGroupMember -ObjectId $EMSE3Group.Id
	$EMSE5Group = Get-AzureADMSGroup -SearchString "EMS E5 Licensed Users"
	# Check if membership has been processed, wait and try again if not yet
	Get-AzureADGroupMember -ObjectId $EMSE5Group.Id

	# Save members to object variable
	$membersEMSE3 = Get-AzureADGroupMember -ObjectId $EMSE3Group.Id
	$membersEMSE5 = Get-AzureADGroupMember -ObjectId $EMSE5Group.Id

	#region EMS License Management for Dynamic Group Membership

	# Get SkuId for EMS E5 (EMSPREMIUM) and EMS
	$EmsE3SkuId = (Get-AzureADSubscribedSku \| Where { $_.SkuPartNumber -eq 'EMS'}).SkuId
	$EmsE5SkuId = (Get-AzureADSubscribedSku \| Where { $_.SkuPartNumber -eq 'EMSPREMIUM'}).SkuId

	# Loop through EMS E3 Members
	ForEach ($member in $membersEMSE3) {
	# Get the user
	$User = Get-AzureADUser -ObjectId $member.ObjectId

	# Create a License Object for assigning the EMS E3 SkuId
	$AddLicense = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicense
	$AddLicense.SkuId = $EmsE3SkuId
	# Create a License Object for removing the EMS E5 SkuId
	$RemoveLicense = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicense
	$RemoveLicense.SkuId = $EmsE5SkuId

	# Create a Licenses Object for Adding and Removing the Licenses
	$Licenses = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicenses
	$Licenses.AddLicenses = $AddLicense
	# Check if the User has license to be removed
	If ($user.AssignedLicenses \| Where-Object {$_.SkuId -eq $EmsE5SkuId}) {
	$Licenses.RemoveLicenses = $RemoveLicense.SkuId
	}
	Else { $Licenses.RemoveLicenses = @() }

	# And lastly, update User license with added and removed licenses
	Set-AzureADUserLicense -ObjectId $User.ObjectId -AssignedLicenses $Licenses
	}

	# Loop through EMS E5 Members
	ForEach ($member in $membersEMSE5) {
	# Get the user
	$User = Get-AzureADUser -ObjectId $member.ObjectId

	# Create a License Object for assigning the EMS E5 SkuId
	$AddLicense = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicense
	$AddLicense.SkuId = $EmsE5SkuId
	# Create a License Object for removing the EMS E3 SkuId
	$RemoveLicense = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicense
	$RemoveLicense.SkuId = $EmsE3SkuId

	# Create a Licenses Object for Adding and Removing the Licenses
	$Licenses = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicenses
	$Licenses.AddLicenses = $AddLicense
	# Check if the User has license to be removed
	If ($user.AssignedLicenses \| Where-Object {$_.SkuId -eq $EmsE3SkuId}) {
	$Licenses.RemoveLicenses = $RemoveLicense.SkuId
	}
	Else { $Licenses.RemoveLicenses = @() }

	# And lastly, update User license with added and removed licenses
	Set-AzureADUserLicense -ObjectId $User.ObjectId -AssignedLicenses $Licenses
	}

	#endregion

view raw

EMSAssignLicense.ps1

hosted with ❤ by GitHub

Link to script for managing and listing extension attribute properties for your users:

	# Azure AD v2 PowerShell Module CmdLets for working with Extension Attribute Properties

	# Connect to Azure AD with Global Administrator
	Connect-AzureAD

	# Get a User and Read Extension Properties
	$aadUser = Get-AzureADUser -ObjectId <youruser>
	$aadUser \| Select -ExpandProperty ExtensionProperty

	# Serialize User Object to JSON
	$aadUser.ToJson()

	# Explore Object Properties
	$aadUser \| Get-Member

	# How to: Add Extension Properties
	# PS! Can only write to Cloud homed users
	$aadUser = Get-AzureADUser -ObjectId <yourclouduser>@elven.onmicrosoft.com
	$extensionProp = New-Object "System.Collections.Generic.Dictionary“2[System.String,System.String]"
	$extensionProp.Add('extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute1','ENTERPRISEPACK')
	$extensionProp.Add('extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute2','EMSPREMIUM')
	Set-AzureADUser -ObjectId $aadUser.ObjectId -ExtensionProperty $extensionProp

	# Check added Extension Properties
	Get-AzureADUser -ObjectId <yourclouduser>@elven.onmicrosoft.com \| Select -ExpandProperty ExtensionProperty

	#region List all users with Extension Properties
	$aadUsers = Get-AzureADUser \| Select DisplayName, ObjectId
	$aadUsersExt = @()

	ForEach ($aadUser in $aadUsers) {
	$user = Get-AzureADUser -ObjectId $aadUser.ObjectId \| Select ObjectId, DisplayName
	$userDetail = Get-AzureADUser -ObjectId $aadUser.ObjectId \| Select -ExpandProperty ExtensionProperty
	foreach ($key in $userDetail.Keys)
	{
	if($key -like "extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute1")
	{
	$ext1 = $userDetail."$key"
	}
	elseif($key -like "extension_<YourTenantSchemaExtensionAppId>_msDS_cloudExtensionAttribute2")
	{
	$ext2 = $userDetail."$key"
	}
	else { $ext1 = ""; $ext2 = "" }
	}
	$obj = [pscustomobject]@{"DisplayName"=$user.DisplayName; "ObjectId"=$user.ObjectId; "Ext1"=$ext1; "Ext2"=$ext2}
	$aadUsersExt += $obj
	}

	# List only users with values for extension attributes
	$aadUsersExt \| Where {$_.Ext1 -or $_.Ext2} \| FT

	#endregion

	# List all users
	$aadUsersExt

	# Serialize users and extension attributes to JSON
	$aadUsersExt \| ConvertTo-Json

view raw

AzureADExtensionProperty.ps1

hosted with ❤ by GitHub

Session Recap, PowerShell Scripts and Resources from session on Azure AD Management Skills at NICConf 2017

1 Reply

Last week at NICConf I presented two sessions on Management of Microsoft Azure AD, Application Publishing with Azure AD – the New Management Experience! and Take your Azure AD Management Skills to the Next Level with Azure AD Graph API and Powershell!

In the last session i presented demos and scripts with some technical details, so in this blog post I will link to those PowerShell scripts together with some explanations. See also my slides for the sessions published here: https://docs.com/jan-vidar-elven-1/7677/nicconf-2017, and the session recording might be available later which I will link to.

First i talked about the new Azure AD PowerShell v2 module and install info:

	# Azure AD v2 PowerShell Quickstart module install
	# Azure AD has a GA version: AzureAD and Preview version: AzureADPreview

	# Check available versions installed
	Get-Module AzureAD -ListAvailable
	Get-Module AzureADPreview -ListAvailable

	# Install from PowerShell Gallery
	Install-Module AzureAD
	Install-Module AzureADPreview

	# Update new versions from PS Gallery
	Update-Module AzureAD
	Update-Module AzureADPreview

	# Check and uninstall old versions
	$Latest = Get-InstalledModule ("AzureADPreview")
	Get-InstalledModule ("AzureADPreview") -AllVersions \| ? {$_.Version -ne $Latest.Version} \| Uninstall-Module -WhatIf

	# Check Commands, see also list of commands at: ref. https://docs.microsoft.com/en-us/powershell/azuread/v2/azureactivedirectory
	Get-Command -Module AzureADPreview

view raw

AzureADPowerShellQuickstartInstall.ps1

hosted with ❤ by GitHub

Then connecting and exploring some objects and license info:

	# Azure AD v2 PowerShell Quickstart Connect

	# Connect with Credential Object
	$AzureAdCred = Get-Credential
	Connect-AzureAD -Credential $AzureAdCred

	# Connect with Modern Authentication
	Connect-AzureAD

	# Explore some objects
	Get-AzureADUser

	# Getting users by objectid, upn and searching
	Get-AzureADUser -ObjectId <objectid>
	Get-AzureADUser -ObjectId [email protected]
	Get-AzureADUser -SearchString "Jan Vidar"

	# Explore deeper via object variable
	$AADUser = Get-AzureADUser -ObjectId [email protected]

	$AADUser \| Get-Member

	$AADUser \| FL

	# Look at licenses and history for enable and disable
	$AADUser.AssignedPlans
	# Or
	Get-AzureADUser -ObjectId [email protected] \| Select-Object -ExpandProperty AssignedPlans

	# More detail for individual licenses for plans
	Get-AzureADUserLicenseDetail -ObjectId $AADUser.ObjectId \| Select-Object -ExpandProperty ServicePlans

	# Get your tenants subscriptions, and explore details
	Get-AzureADSubscribedSku \| FL
	Get-AzureADSubscribedSku \| Select-Object SkuPartNumber -ExpandProperty PrepaidUnits
	Get-AzureADSubscribedSku \| Select-Object SkuPartNumber -ExpandProperty ServicePlans

	# Invalidate Users Refresh tokens
	Revoke-AzureADUserAllRefreshToken -ObjectId $AADUser.ObjectId

view raw

AzureADPowerShellQuickstartConnect.ps1

hosted with ❤ by GitHub

Then performing some Administration tasks including creating Dynamic Groups, setting user thumbnail photo, adding licenses and changing passwords:


	# Create a Dynamic Group for my test users of Seinfeld characters
	New-AzureADMSGroup -DisplayName "Seinfeld Users" -Description "Dynamic groups with all Seinfeld users" -MailEnabled $false -SecurityEnabled $true -MailNickname "seinfeld" -GroupTypes "DynamicMembership" -MembershipRule "(user.department -eq ""Seinfeld"")" -MembershipRuleProcessingState "Paused"

	# Get Group and members
	$AADGroup = Get-AzureADMSGroup -SearchString "Seinfeld Users"
	Get-AzureADGroupMember -ObjectId $AADGroup.Id

	# Set Membership Processing
	$AADGroup \| Set-AzureADMSGroup -MembershipRuleProcessingState On

	# Save members to object variable
	$members = Get-AzureADGroupMember -ObjectId $AADGroup.Id

	# Set User Thumbnail Photo
	# Note that setting Thumbnailphoto can only be set against cloud mastered objects, or else error message:
	# Unable to update the specified properties for on-premises mastered Directory Sync objects or objects currently undergoing migration.
	Set-AzureADUserThumbnailPhoto -ObjectId <myuserupn or objectid> -FilePath C:\_source\temp\[email protected]

	# Get and View User Thumbnail Photo
	Get-AzureADUserThumbnailPhoto -ObjectId <myuserupn or objectid> -view $true

	#region License management for a collection of users
	# For example assigning EMS E5 license plan

	# Get SkuId for EMS E5 (EMS PREMIUM)
	$EmsSkuId = (Get-AzureADSubscribedSku \| Where { $_.SkuPartNumber -eq 'EMSPREMIUM'}).SkuId

	ForEach ($member in $members) {

	# Get the user
	$User = Get-AzureADUser -ObjectId $member.ObjectId

	# Create a License Object for assigning the wanted SkuId
	$License = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicense
	$License.SkuId = $EmsSkuId

	# Create a Licenses Object for Adding the License
	$Licenses = New-Object -TypeName Microsoft.Open.AzureAD.Model.AssignedLicenses
	$Licenses.AddLicenses = $License
	# If I wanted to remove licenses I would use .RemoveLicenses instead

	# And lastly, update User license with added (or removed) licenses
	Set-AzureADUserLicense -ObjectId $User.ObjectId -AssignedLicenses $Licenses

	}

	#endregion


	# Reset a Users password
	# Note that synchronized users need Azure AD Premium, and Azure AD Connect with Password Write-Back Configured
	$password = Read-Host -AsSecureString

	Set-AzureADUserPassword -ObjectId <myuserupn or objectid> -Password $password

	# Change (not Reset) the current logged on users password
	Update-AzureADSignedInUserPassword -CurrentPassword $CurrentPassword -NewPassword $NewPassword

view raw

AzureADPowerShellQuickstartAdmin.ps1

hosted with ❤ by GitHub

In the next part of my session I went on to talk about the Azure AD Graph API and the Microsoft Graph API. The Microsoft Graph API will eventually be the “one API to rule them all”, as Azure AD also can be accessed by that API, but there are still use cases for the Azure AD Graph API.

In either case, to be able to use the APIs you must create and register an Azure AD Application of type Web App/Api, and give that Application the needed permissions to access the APIs. I showed in my session how to do this in the portal, and here you have a PowerShell Script for creating that same type of Application, this example for accessing the Azure AD Graph API:

	# This Application is for accessing the Azure AD Graph Api

	# Log in to Azure AD with Global Admin
	Connect-AzureAD

	# Create the Azure AD API Application
	$azureAdApp = New-AzureADApplication -DisplayName "Elven Azure AD Reporting Api App" -Homepage "https://localhost" -IdentifierUris "https://localhost/azureadreportingapi" -ReplyUrls "https://localhost"

	$keyStartDate = "{0:s}" -f (get-date).AddHours(-1) + "Z"
	$keyEndDate = "{0:s}" -f (get-date).AddYears(1) + "Z"

	# Create Password Key Secret
	$azureAdAppKeySecret = New-AzureADApplicationPasswordCredential -ObjectId $azureAdApp.ObjectId -CustomKeyIdentifier "Azure AD Api Reporting Key" -StartDate $keyStartDate -EndDate $keyEndDate

	# Get the Azure AD SPN
	$azureAdSpn = Get-AzureADServicePrincipal -Filter "DisplayName eq 'Microsoft.Azure.ActiveDirectory'"

	# Get the Oauth2 permissions for Read and Sign-in plus Directory Read
	$azureAdOauth2UserSignInProfileRead = $azureAdSpn \| select -expand Oauth2Permissions \| ? {$_.value -eq "User.Read"}
	$azureAdOauth2DirectoryRead = $azureAdSpn \| select -expand Oauth2Permissions \| ? {$_.value -eq "Directory.Read.All"}

	# Build a Required Resource Access Object with permissions for User.Read + Sign in and Directory Read
	$requiredResourceAccess = [Microsoft.Open.AzureAD.Model.RequiredResourceAccess]@{
	ResourceAppId=$azureAdSpn.AppId ;
	ResourceAccess=[Microsoft.Open.AzureAD.Model.ResourceAccess]@{
	Id = $azureAdOauth2UserSignInProfileRead.Id ;
	Type = "Scope"
	},
	[Microsoft.Open.AzureAD.Model.ResourceAccess]@{
	Id = $azureAdOauth2DirectoryRead.Id ;
	Type = "Role"
	}
	}

	# Set the required resources for the Azure AD Application
	Set-AzureADApplication -ObjectId $azureadapp.ObjectId -RequiredResourceAccess $requiredResourceAccess

	# Associate a new Service Principal to my Azure AD Application
	$appspn = New-AzureADServicePrincipal -AppId $azureadapp.AppId -Tags @("WindowsAzureActiveDirectoryIntegratedApp")

	# Add Permission Grant for that App Service Principal to the Microsoft.Azure.ActiveDirectory API
	## This is the only thing that cannot be automated by now!
	### Go to the Azure Portal and your Azure AD, under App Registrations, find this Reporting Api App, and under Permissions select to Grant Permission

view raw

AzureADAPIApplication.ps1

hosted with ❤ by GitHub

Note that for the above script, you will need to note some output and manual operations:

Take a note of the Application ID, you will need that later:

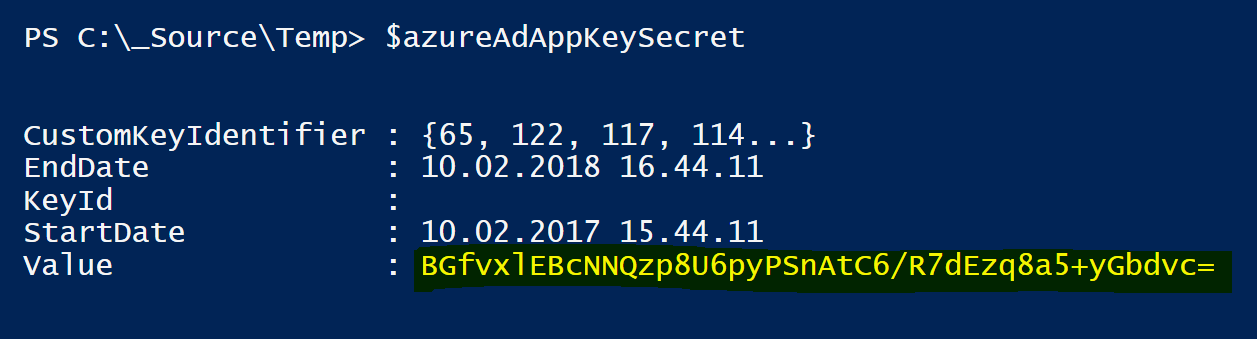

Take note of the Key Secret, you will need that later also:

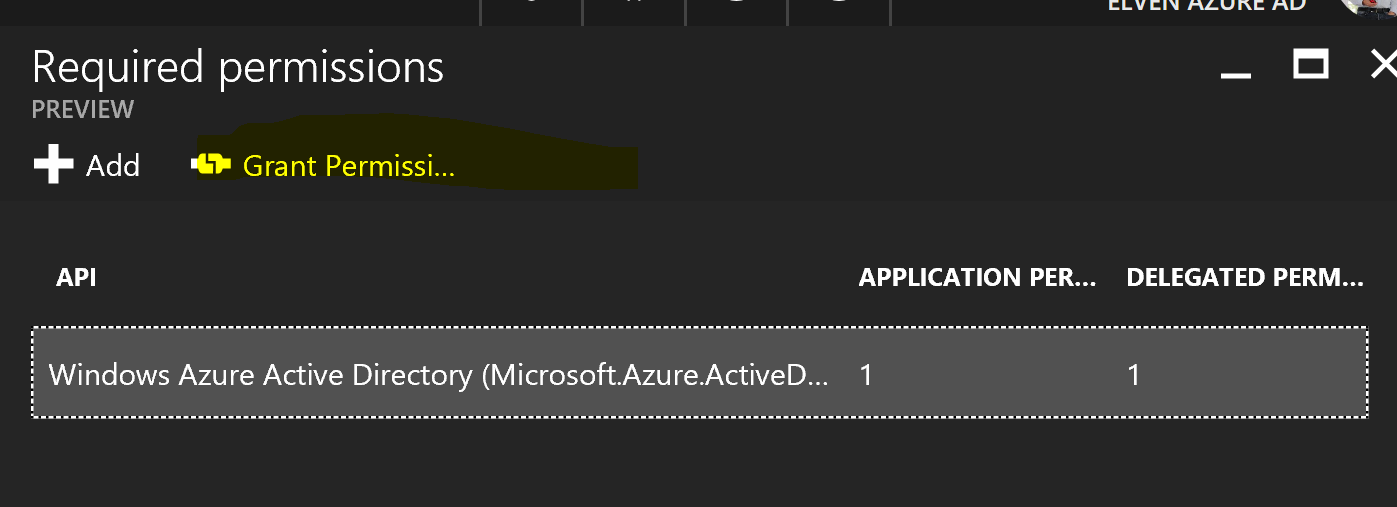

Application must be manually granted permission here, as this per now cannot be automated with PowerShell:

By the way, you should newer share this App Id and key secret publically (as I have just done here 😉 Other people could use that same information to access your APIs and Azure AD info, so take care to protect that info! (Of course I have deleted that info after showing this here 😉

Now, with this App registered in Azure AD, we can now start managing Azure AD via REST API calls, for example from PowerShell. The following script shows how we can get Self Service Password Registration Activity via the Azure AD Graph API, specifically we will use the Reporting API (https://msdn.microsoft.com/en-us/library/azure/ad/graph/howto/azure-ad-reports-and-events-preview). Note that the script will need the App Id and Key value noted from above:

	# PowerShell for calling the Azure AD Graph Reporting REST API, https://msdn.microsoft.com/en-us/library/azure/ad/graph/howto/azure-ad-reports-and-events-preview
	# Getting Self Service Password Reset Registrations

	# This script will require registration of a Web Application in Azure Active Directory

	# Method 1: Use steps here for manually creating required Web App: https://docs.microsoft.com/en-us/azure/active-directory/active-directory-reporting-api-prerequisites
	# Method 2: Use Azure AD PowerShell as documented here: https://gist.github.com/skillriver/b46c51e2902a331a91221c6828bd320c#file-azureadapiapplication-ps1

	$loginURL = "https://login.microsoftonline.com"
	$tenantdomain = "<yourtenant>.onmicrosoft.com"

	# Fill in your App Id and Key Secret
	$azureAdAppId = "<app id for azure ad application>"
	$azureAdAppKey = "<valid key secret for azure ad application>"

	# Create a credential based on already registered Azure AD App Id and Key Secret
	$keysecurestring = ConvertTo-SecureString $azureAdAppKey -AsPlainText -Force
	$reportingapicred = New-Object System.Management.Automation.PSCredential ($azureAdAppId, $keysecurestring)

	# Get an Oauth 2 access token based on client id, secret and tenant domain
	$body = @{grant_type="client_credentials";resource=$resource;client_id=$reportingapicred.UserName;client_secret=$reportingapicred.GetNetworkCredential().Password}
	$oauth = Invoke-RestMethod -Method Post -Uri $loginURL/$TenantDomain/oauth2/token?api-version=1.0 -Body $body

	# Define a header with the authorization token
	$headerParams = @{'Authorization'="$($oauth.token_type) $($oauth.access_token)"}

	# Build the request, here we are looking for SSPR activity
	$topResults = 100 # Tweak this value if you want different page size and present it in a report
	$reportContent = @()
	$reportUrl = "https://graph.windows.net/$TenantDomain/reports/ssprRegistrationActivityEvents?api-version=beta&`$top=$topResults"
	$reportCount = 0

	# Returns a JSON document for the "ssprRegistrations" report
	$ssprRegistrations = (Invoke-WebRequest -Headers $headerParams -Uri $reportUrl -UseBasicParsing).Content \| ConvertFrom-Json

	# Adding data to the Report
	$reportContent += $ssprRegistrations.value \| Select -Unique eventTime, role, registrationActivity, displayName, userName

	# Showing the Report
	$reportContent

	# Exporting the Report to a Comma Separated Value file
	$reportContent \| Export-Csv "ElvenAzureAD_SSPRregistrations.csv" -NoTypeInformation -Delimiter ","

view raw

AzureADReportingAPI_SSPR.ps1

hosted with ❤ by GitHub

With that last export to a Csv file I can import it to Power BI as a table, and create a report and a dashboard on it, for example showing which password reset registration method the users configured, what user and role type did the registration and the count and date for the registrations:

In the session we also looked at the new Content Pack for Azure AD, showing sign-in and audit events, and also how you can get data from the Microsoft Graph API using a OData Feed:

I hope this scripts will be as useful for you as it is for me! Good luck with taking your management of Azure AD to the next level with Azure AD PowerShell and Graph APIs!

How to use PowerShell script for setting Azure AD Password Reset Writeback On-premises Permissions

1 Reply

When you configure the Azure AD Premium Self Service Password Reset solution on your Azure AD tenant and then the Azure AD Connect Password Writeback feature, you will need to add permissions in your local Active Directory that permits the Azure AD Connect account to actually change and reset passwords for your users , as detailed here: https://docs.microsoft.com/en-us/azure/active-directory/active-directory-passwords-getting-started#step-4-set-up-the-appropriate-active-directory-permissions.

I wrote this PowerShell script that helps you configure this correctly in your domain/forest. Some notes:

You can use it in a single-domain, single-forest domain, or in a multi-domain forest, just remember to specify a Domain Controller for the wanted domain, and for the domain the Azure AD Connect account is in.
You have to find the Azure AD Connect Synchronization account, it would be MSOL_xxxx.. if you have used Express settings, or a dedicated account. Look at current configuration for details.
You can specify an OU for your users, and if inheritance is enabled all subordinate users and OUs will inherit the permissions. If not, please run the script once for each OU you want the permissions to be applied for.

Here is the script:

	# Description: Sets Azure AD Connect Password Write Back AD Permissions
	# Created by: Jan Vidar Elven, Enterprise Mobility MVP, Skill AS
	# Last Modified: 01.06.2016
	# Run this on-premises for your domain/forest

	Import-Module ActiveDirectory

	#region Initial Parameters/Variables

	# Domain Controller in wanted domain, leave blank if using current domain
	$dcserver = "mydc.domain.local"

	# Azure AD Connect Synchronization Account
	$aadcaccount = "MSOL_xxxxx"

	# Azure AD Connect Account Domain Controller
	$aadcserver = "mydc.domain.local"

	# Organizational Unit Distinguished Name, starting point for delegation
	$oudn = "OU=<UsersOU>,DC=domain,DC=local"

	#endregion

	# Check if default current domain or specified domain should be used

	If ($dcserver -eq $null) {
	# Get a reference to the RootDSE of the current domain
	$rootdse = Get-ADRootDSE
	# Get a reference to the current domain
	$domain = Get-ADDomain
	}
	Else {
	# Get a reference to the RootDSE of the domain for the specified server
	$rootdse = Get-ADRootDSE -Server $dcserver
	# Get a reference to the domain for the specified server
	$domain = Get-ADDomain -Server $dcserver
	}

	# Refer to my Active Directory, either current or specified server from above
	New-PSDrive -Name "myAD" -Root "" -PsProvider ActiveDirectory -Server $rootdse.dnsHostName

	# Change to My Active Directory Command Prompt
	cd myAD:

	# Create a hashtable to store the GUID value of each schema class and attribute
	$guidmap = @{}
	Get-ADObject -SearchBase ($rootdse.SchemaNamingContext) -LDAPFilter `
	"(schemaidguid=*)" -Properties lDAPDisplayName,schemaIDGUID \|
	% {$guidmap[$_.lDAPDisplayName]=[System.GUID]$_.schemaIDGUID}

	# Create a hashtable to store the GUID value of each extended right in the forest
	$extendedrightsmap = @{}
	Get-ADObject -SearchBase ($rootdse.ConfigurationNamingContext) -LDAPFilter `
	"(&(objectclass=controlAccessRight)(rightsguid=*))" -Properties displayName,rightsGuid \|
	% {$extendedrightsmap[$_.displayName]=[System.GUID]$_.rightsGuid}

	# Get a reference to the OU we want to delegate
	$ou = Get-ADOrganizationalUnit -Identity $oudn

	# Get the SID value of the Azure AD Connect Sync Account we wish to delegate access to
	$a = New-Object System.Security.Principal.SecurityIdentifier (Get-ADUser $aadcaccount -Server $aadcserver).SID

	# Get a copy of the current DACL on the OU
	$acl = Get-ACL -Path ($ou.DistinguishedName)

	# Create an Access Control Entry for new permission we wish to add

	# Allow the Azure AD Account to reset passwords on all descendent user objects
	$acl.AddAccessRule((New-Object System.DirectoryServices.ActiveDirectoryAccessRule `
	$a,"ExtendedRight","Allow",$extendedrightsmap["Reset Password"],"Descendents",$guidmap["user"]))

	# Allow the Azure AD Account to change passwords on all descendent user objects
	$acl.AddAccessRule((New-Object System.DirectoryServices.ActiveDirectoryAccessRule `
	$a,"ExtendedRight","Allow",$extendedrightsmap["Change Password"],"Descendents",$guidmap["user"]))

	# Allow the Azure AD Account to write lockoutTime extended property
	$acl.AddAccessRule((New-Object System.DirectoryServices.ActiveDirectoryAccessRule `
	$a,"WriteProperty","Allow",$guidmap["lockoutTime"],"Descendents",$guidmap["user"]))

	# Allow the Azure AD Account to write pwdLastSet extended property
	$acl.AddAccessRule((New-Object System.DirectoryServices.ActiveDirectoryAccessRule `
	$a,"WriteProperty","Allow",$guidmap["pwdLastSet"],"Descendents",$guidmap["user"]))

	# Re-apply the modified DACL to the OU
	Set-ACL -ACLObject $acl -Path ("myAD:\"+($ou.DistinguishedName))

view raw

AzureADConnectSSPRPermissions.ps1

hosted with ❤ by GitHub

Hope the script will be helpful!

Exchange Online PowerShell with Modern Authentication and Azure MFA available!

14 Replies

A while back I wrote a blog post on how you could use Azure AD Privileged Identity Management to indirectly require MFA for Office 365 Administrator Roles activation before they connected to Exchange online via Remote PowerShell. See https://gotoguy.blog/2016/09/09/how-to-enable-azure-mfa-for-online-powershell-modules-that-dont-support-mfa/.

In december a new Exchange Online Remote PowerShell Module was released (in preview), https://technet.microsoft.com/en-us/library/mt775114(v=exchg.160), that uses Modern Authentication and that supports Azure Multi-Factor Authentication. Lets try it out:

First you need to verify that Modern Authentication is enabled in your Exchange Online organization, as this is not enabled by default: https://support.office.com/en-us/article/Enable-Exchange-Online-for-modern-authentication-58018196-f918-49cd-8238-56f57f38d662?ui=en-US&rs=en-US&ad=US

In my Exchange Online organization I verify that Modern Authentication is enabled:

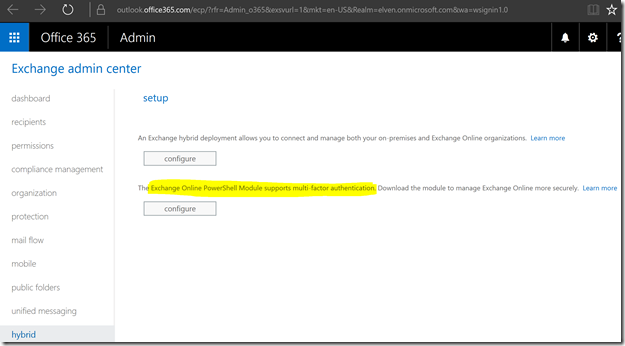

Next logon to your Exchange Online Admin Center, and go to Hybrid to download and configure the Exchange Online PowerShell Module:

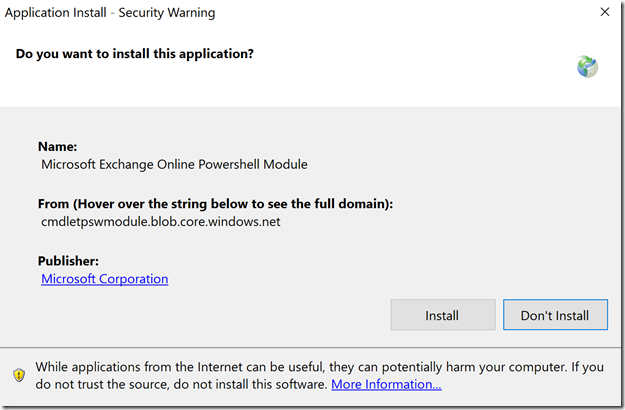

The configure button activates a click once install:

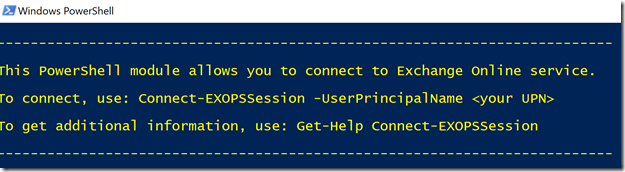

After installation I’m ready to connect:

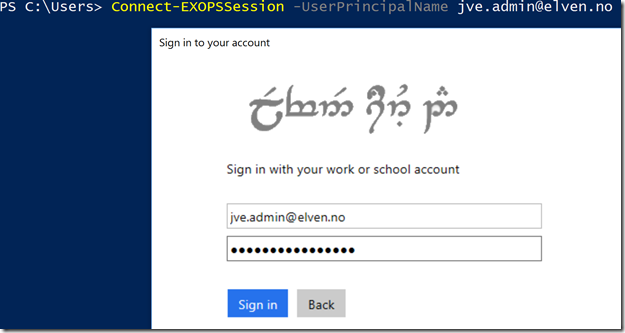

Lets try it out on a MFA enabled admin user:

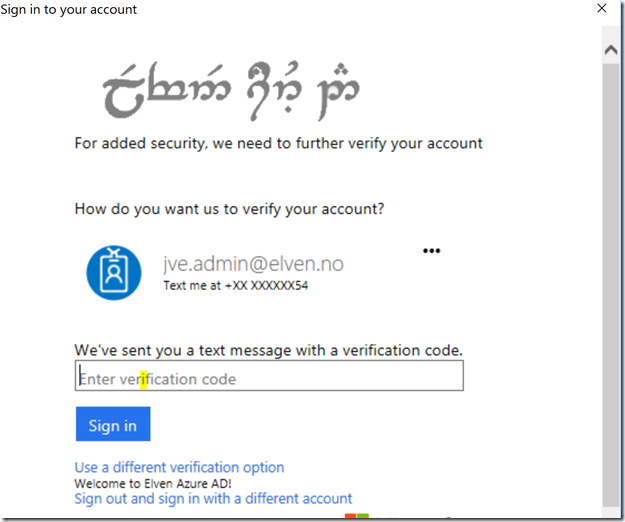

And as expected, I’m prompted to provide my verification code:

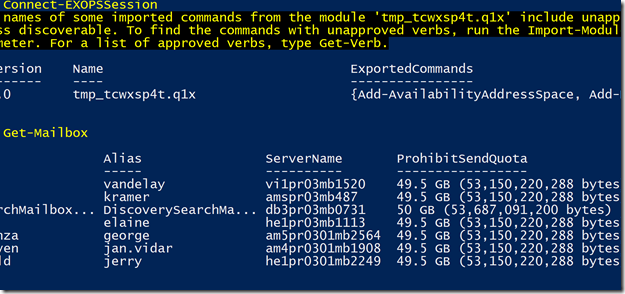

And after verification I can administer Exchange Online:

So with that we are finally able to log in to Exchange Online PowerShell more securely with Azure Multi-Factor Authentication as long as Modern Authentication is enabled for your organization!

	Simon does How to Te… on Automatic Provisioning and Dep…
	Respond in bulk usin… on Blog Series – Power…
	Build your own Secur… on Add Graph Application Permissi…
	BM on Connect to Microsoft Graph in…
	The latest technolog… on Connect to Microsoft Graph in…

GoToGuy Blog

A Blog about Enterprise Mobility + Security, Azure AD, Datacenter Management, Service Delivery, Automation, Monitoring, Cloud OS, Azure and anything worthwhile sharing with the Cloud and Datacenter community.

Category Archives: Enterprise Mobility Suite

Azure Advent Calendar 2019 – Azure Information Protection

Exploring Azure MFA sign-in failures using Log Analytics

Querying the SigninLogs for failed and interrupted sign-ins

Summary

Azure MFA Report Dashboard in Azure Portal–The Good, The Bad and The Ugly

The Good – Setting up the Markdown Tile

The Bad – PowerShell Script for getting MFA registration and methods to Markdown

The Ugly – Automating Markdown creation and update Dashboard

Get Started with Group Based Licensing in the Azure AD Portal!

Publish the Cireson Configuration Manager Portal with Azure AD Application Proxy

Enable Azure AD Application Proxy

Download and install Application Proxy Connector

Publish the Configuration Manager Portal App

Testing Single Sign-On

Working with Azure AD Extension Attributes with Azure AD PowerShell v2

Assign EMS License with Azure AD v2 PowerShell and Dynamic Groups

Source of Authority, Attributes, Sync and Dynamic Groups

Creating Dynamic Groups for Assigning EMS Licenses

Assigning the EMS licenses based on group membership

Session Recap, PowerShell Scripts and Resources from session on Azure AD Management Skills at NICConf 2017

How to use PowerShell script for setting Azure AD Password Reset Writeback On-premises Permissions

Exchange Online PowerShell with Modern Authentication and Azure MFA available!
