Last week at NICConf I presented two sessions on Management of Microsoft Azure AD, Application Publishing with Azure AD – the New Management Experience! and Take your Azure AD Management Skills to the Next Level with Azure AD Graph API and Powershell!
In the last session i presented demos and scripts with some technical details, so in this blog post I will link to those PowerShell scripts together with some explanations. See also my slides for the sessions published here: https://docs.com/jan-vidar-elven-1/7677/nicconf-2017, and the session recording might be available later which I will link to.
First i talked about the new Azure AD PowerShell v2 module and install info:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # Azure AD v2 PowerShell Quickstart module install | |
| # Azure AD has a GA version: AzureAD and Preview version: AzureADPreview | |
| # Check available versions installed | |
| Get-Module AzureAD –ListAvailable | |
| Get-Module AzureADPreview –ListAvailable | |
| # Install from PowerShell Gallery | |
| Install-Module AzureAD | |
| Install-Module AzureADPreview | |
| # Update new versions from PS Gallery | |
| Update-Module AzureAD | |
| Update-Module AzureADPreview | |
| # Check and uninstall old versions | |
| $Latest = Get-InstalledModule ("AzureADPreview") | |
| Get-InstalledModule ("AzureADPreview") –AllVersions | ? {$_.Version -ne $Latest.Version} | Uninstall-Module –WhatIf | |
| # Check Commands, see also list of commands at: ref. https://docs.microsoft.com/en-us/powershell/azuread/v2/azureactivedirectory | |
| Get-Command –Module AzureADPreview |
Then connecting and exploring some objects and license info:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # Azure AD v2 PowerShell Quickstart Connect | |
| # Connect with Credential Object | |
| $AzureAdCred = Get-Credential | |
| Connect-AzureAD –Credential $AzureAdCred | |
| # Connect with Modern Authentication | |
| Connect-AzureAD | |
| # Explore some objects | |
| Get-AzureADUser | |
| # Getting users by objectid, upn and searching | |
| Get-AzureADUser –ObjectId <objectid> | |
| Get-AzureADUser –ObjectId jan.vidar@elven.no | |
| Get-AzureADUser –SearchString "Jan Vidar" | |
| # Explore deeper via object variable | |
| $AADUser = Get-AzureADUser –ObjectId jan.vidar@elven.no | |
| $AADUser | Get-Member | |
| $AADUser | FL | |
| # Look at licenses and history for enable and disable | |
| $AADUser.AssignedPlans | |
| # Or | |
| Get-AzureADUser –ObjectId jan.vidar@elven.no | Select-Object –ExpandProperty AssignedPlans | |
| # More detail for individual licenses for plans | |
| Get-AzureADUserLicenseDetail –ObjectId $AADUser.ObjectId | Select-Object –ExpandProperty ServicePlans | |
| # Get your tenants subscriptions, and explore details | |
| Get-AzureADSubscribedSku | FL | |
| Get-AzureADSubscribedSku | Select-Object SkuPartNumber –ExpandProperty PrepaidUnits | |
| Get-AzureADSubscribedSku | Select-Object SkuPartNumber –ExpandProperty ServicePlans | |
| # Invalidate Users Refresh tokens | |
| Revoke-AzureADUserAllRefreshToken –ObjectId $AADUser.ObjectId | |
Then performing some Administration tasks including creating Dynamic Groups, setting user thumbnail photo, adding licenses and changing passwords:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # Create a Dynamic Group for my test users of Seinfeld characters | |
| New-AzureADMSGroup –DisplayName "Seinfeld Users" –Description "Dynamic groups with all Seinfeld users" –MailEnabled $false –SecurityEnabled $true –MailNickname "seinfeld" –GroupTypes "DynamicMembership" –MembershipRule "(user.department -eq ""Seinfeld"")" –MembershipRuleProcessingState "Paused" | |
| # Get Group and members | |
| $AADGroup = Get-AzureADMSGroup –SearchString "Seinfeld Users" | |
| Get-AzureADGroupMember –ObjectId $AADGroup.Id | |
| # Set Membership Processing | |
| $AADGroup | Set-AzureADMSGroup –MembershipRuleProcessingState On | |
| # Save members to object variable | |
| $members = Get-AzureADGroupMember –ObjectId $AADGroup.Id | |
| # Set User Thumbnail Photo | |
| # Note that setting Thumbnailphoto can only be set against cloud mastered objects, or else error message: | |
| # Unable to update the specified properties for on-premises mastered Directory Sync objects or objects currently undergoing migration. | |
| Set-AzureADUserThumbnailPhoto –ObjectId <myuserupn or objectid> –FilePath C:\_source\temp\jan.vidar@elven.no.jpg | |
| # Get and View User Thumbnail Photo | |
| Get-AzureADUserThumbnailPhoto –ObjectId <myuserupn or objectid> –view $true | |
| #region License management for a collection of users | |
| # For example assigning EMS E5 license plan | |
| # Get SkuId for EMS E5 (EMS PREMIUM) | |
| $EmsSkuId = (Get-AzureADSubscribedSku | Where { $_.SkuPartNumber -eq 'EMSPREMIUM'}).SkuId | |
| ForEach ($member in $members) { | |
| # Get the user | |
| $User = Get-AzureADUser –ObjectId $member.ObjectId | |
| # Create a License Object for assigning the wanted SkuId | |
| $License = New-Object –TypeName Microsoft.Open.AzureAD.Model.AssignedLicense | |
| $License.SkuId = $EmsSkuId | |
| # Create a Licenses Object for Adding the License | |
| $Licenses = New-Object –TypeName Microsoft.Open.AzureAD.Model.AssignedLicenses | |
| $Licenses.AddLicenses = $License | |
| # If I wanted to remove licenses I would use .RemoveLicenses instead | |
| # And lastly, update User license with added (or removed) licenses | |
| Set-AzureADUserLicense –ObjectId $User.ObjectId –AssignedLicenses $Licenses | |
| } | |
| #endregion | |
| # Reset a Users password | |
| # Note that synchronized users need Azure AD Premium, and Azure AD Connect with Password Write-Back Configured | |
| $password = Read-Host –AsSecureString | |
| Set-AzureADUserPassword –ObjectId <myuserupn or objectid> –Password $password | |
| # Change (not Reset) the current logged on users password | |
| Update-AzureADSignedInUserPassword –CurrentPassword $CurrentPassword –NewPassword $NewPassword |
In the next part of my session I went on to talk about the Azure AD Graph API and the Microsoft Graph API. The Microsoft Graph API will eventually be the “one API to rule them all”, as Azure AD also can be accessed by that API, but there are still use cases for the Azure AD Graph API.
In either case, to be able to use the APIs you must create and register an Azure AD Application of type Web App/Api, and give that Application the needed permissions to access the APIs. I showed in my session how to do this in the portal, and here you have a PowerShell Script for creating that same type of Application, this example for accessing the Azure AD Graph API:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # This Application is for accessing the Azure AD Graph Api | |
| # Log in to Azure AD with Global Admin | |
| Connect-AzureAD | |
| # Create the Azure AD API Application | |
| $azureAdApp = New-AzureADApplication –DisplayName "Elven Azure AD Reporting Api App" –Homepage "https://localhost" –IdentifierUris "https://localhost/azureadreportingapi" –ReplyUrls "https://localhost" | |
| $keyStartDate = "{0:s}" -f (get-date).AddHours(-1) + "Z" | |
| $keyEndDate = "{0:s}" -f (get-date).AddYears(1) + "Z" | |
| # Create Password Key Secret | |
| $azureAdAppKeySecret = New-AzureADApplicationPasswordCredential –ObjectId $azureAdApp.ObjectId –CustomKeyIdentifier "Azure AD Api Reporting Key" –StartDate $keyStartDate –EndDate $keyEndDate | |
| # Get the Azure AD SPN | |
| $azureAdSpn = Get-AzureADServicePrincipal –Filter "DisplayName eq 'Microsoft.Azure.ActiveDirectory'" | |
| # Get the Oauth2 permissions for Read and Sign-in plus Directory Read | |
| $azureAdOauth2UserSignInProfileRead = $azureAdSpn | select –expand Oauth2Permissions | ? {$_.value -eq "User.Read"} | |
| $azureAdOauth2DirectoryRead = $azureAdSpn | select –expand Oauth2Permissions | ? {$_.value -eq "Directory.Read.All"} | |
| # Build a Required Resource Access Object with permissions for User.Read + Sign in and Directory Read | |
| $requiredResourceAccess = [Microsoft.Open.AzureAD.Model.RequiredResourceAccess]@{ | |
| ResourceAppId=$azureAdSpn.AppId ; | |
| ResourceAccess=[Microsoft.Open.AzureAD.Model.ResourceAccess]@{ | |
| Id = $azureAdOauth2UserSignInProfileRead.Id ; | |
| Type = "Scope" | |
| }, | |
| [Microsoft.Open.AzureAD.Model.ResourceAccess]@{ | |
| Id = $azureAdOauth2DirectoryRead.Id ; | |
| Type = "Role" | |
| } | |
| } | |
| # Set the required resources for the Azure AD Application | |
| Set-AzureADApplication –ObjectId $azureadapp.ObjectId –RequiredResourceAccess $requiredResourceAccess | |
| # Associate a new Service Principal to my Azure AD Application | |
| $appspn = New-AzureADServicePrincipal –AppId $azureadapp.AppId –Tags @("WindowsAzureActiveDirectoryIntegratedApp") | |
| # Add Permission Grant for that App Service Principal to the Microsoft.Azure.ActiveDirectory API | |
| ## This is the only thing that cannot be automated by now! | |
| ### Go to the Azure Portal and your Azure AD, under App Registrations, find this Reporting Api App, and under Permissions select to Grant Permission |
Note that for the above script, you will need to note some output and manual operations:

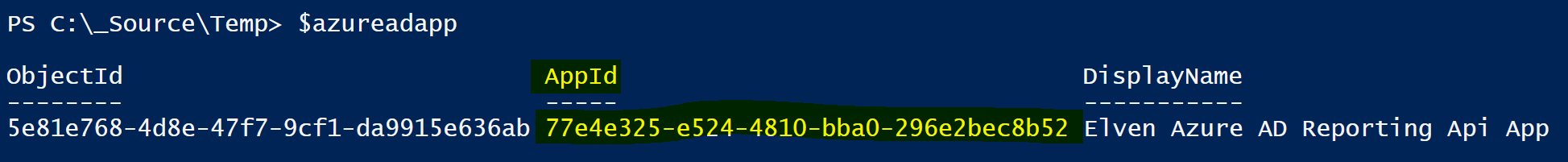

- Take a note of the Application ID, you will need that later:

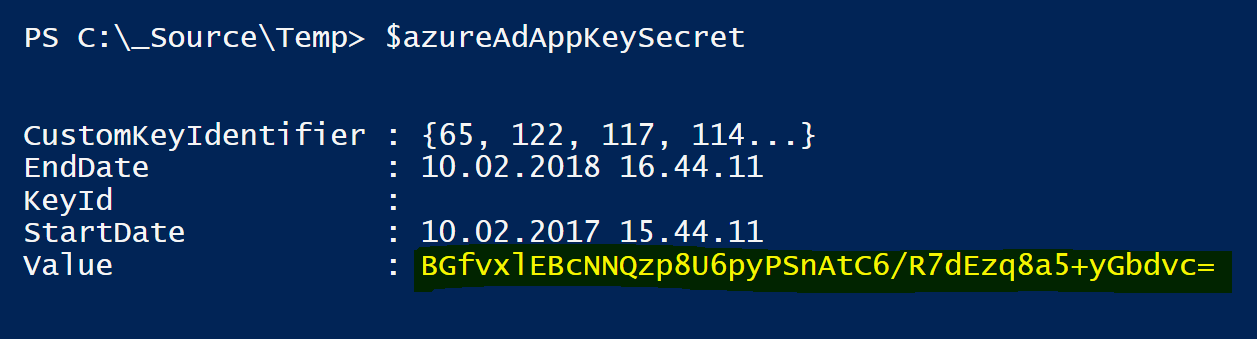

- Take note of the Key Secret, you will need that later also:

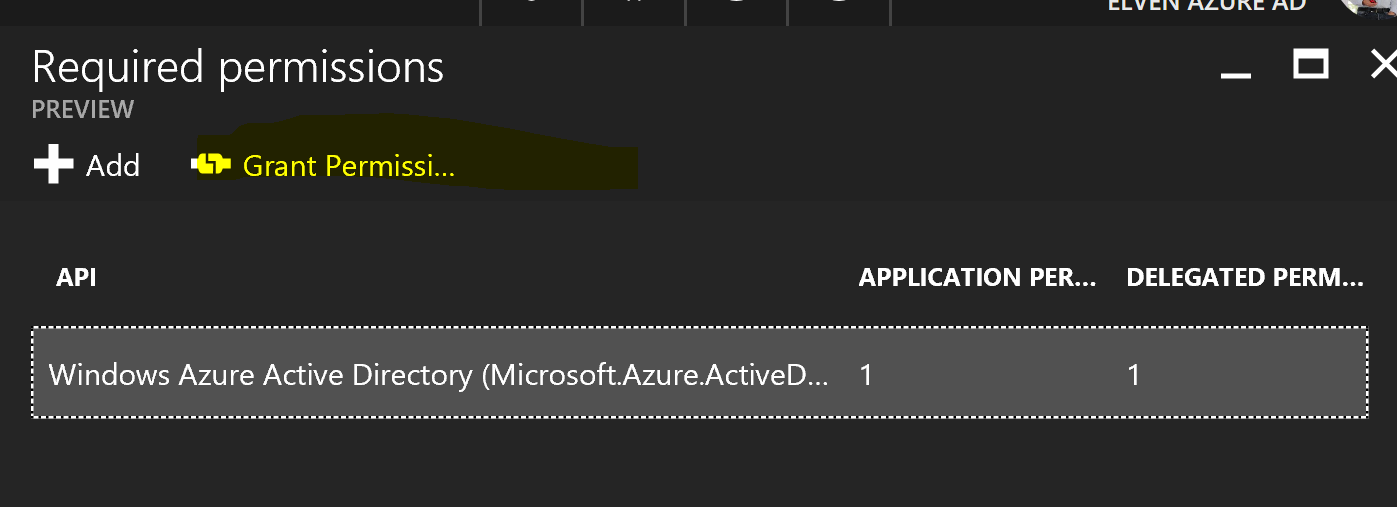

- Application must be manually granted permission here, as this per now cannot be automated with PowerShell:
By the way, you should newer share this App Id and key secret publically (as I have just done here 😉 Other people could use that same information to access your APIs and Azure AD info, so take care to protect that info! (Of course I have deleted that info after showing this here 😉
Now, with this App registered in Azure AD, we can now start managing Azure AD via REST API calls, for example from PowerShell. The following script shows how we can get Self Service Password Registration Activity via the Azure AD Graph API, specifically we will use the Reporting API (https://msdn.microsoft.com/en-us/library/azure/ad/graph/howto/azure-ad-reports-and-events-preview). Note that the script will need the App Id and Key value noted from above:
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
| # PowerShell for calling the Azure AD Graph Reporting REST API, https://msdn.microsoft.com/en-us/library/azure/ad/graph/howto/azure-ad-reports-and-events-preview | |
| # Getting Self Service Password Reset Registrations | |
| # This script will require registration of a Web Application in Azure Active Directory | |
| # Method 1: Use steps here for manually creating required Web App: https://docs.microsoft.com/en-us/azure/active-directory/active-directory-reporting-api-prerequisites | |
| # Method 2: Use Azure AD PowerShell as documented here: https://gist.github.com/skillriver/b46c51e2902a331a91221c6828bd320c#file-azureadapiapplication-ps1 | |
| $loginURL = "https://login.microsoftonline.com" | |
| $tenantdomain = "<yourtenant>.onmicrosoft.com" | |
| # Fill in your App Id and Key Secret | |
| $azureAdAppId = "<app id for azure ad application>" | |
| $azureAdAppKey = "<valid key secret for azure ad application>" | |
| # Create a credential based on already registered Azure AD App Id and Key Secret | |
| $keysecurestring = ConvertTo-SecureString $azureAdAppKey –AsPlainText –Force | |
| $reportingapicred = New-Object System.Management.Automation.PSCredential ($azureAdAppId, $keysecurestring) | |
| # Get an Oauth 2 access token based on client id, secret and tenant domain | |
| $body = @{grant_type="client_credentials";resource=$resource;client_id=$reportingapicred.UserName;client_secret=$reportingapicred.GetNetworkCredential().Password} | |
| $oauth = Invoke-RestMethod –Method Post –Uri $loginURL/$TenantDomain/oauth2/token?api–version=1.0 –Body $body | |
| # Define a header with the authorization token | |
| $headerParams = @{'Authorization'="$($oauth.token_type) $($oauth.access_token)"} | |
| # Build the request, here we are looking for SSPR activity | |
| $topResults = 100 # Tweak this value if you want different page size and present it in a report | |
| $reportContent = @() | |
| $reportUrl = "https://graph.windows.net/$TenantDomain/reports/ssprRegistrationActivityEvents?api-version=beta&`$top=$topResults" | |
| $reportCount = 0 | |
| # Returns a JSON document for the "ssprRegistrations" report | |
| $ssprRegistrations = (Invoke-WebRequest –Headers $headerParams –Uri $reportUrl –UseBasicParsing).Content | ConvertFrom-Json | |
| # Adding data to the Report | |
| $reportContent += $ssprRegistrations.value | Select –Unique eventTime, role, registrationActivity, displayName, userName | |
| # Showing the Report | |
| $reportContent | |
| # Exporting the Report to a Comma Separated Value file | |
| $reportContent | Export-Csv "ElvenAzureAD_SSPRregistrations.csv" –NoTypeInformation –Delimiter "," |

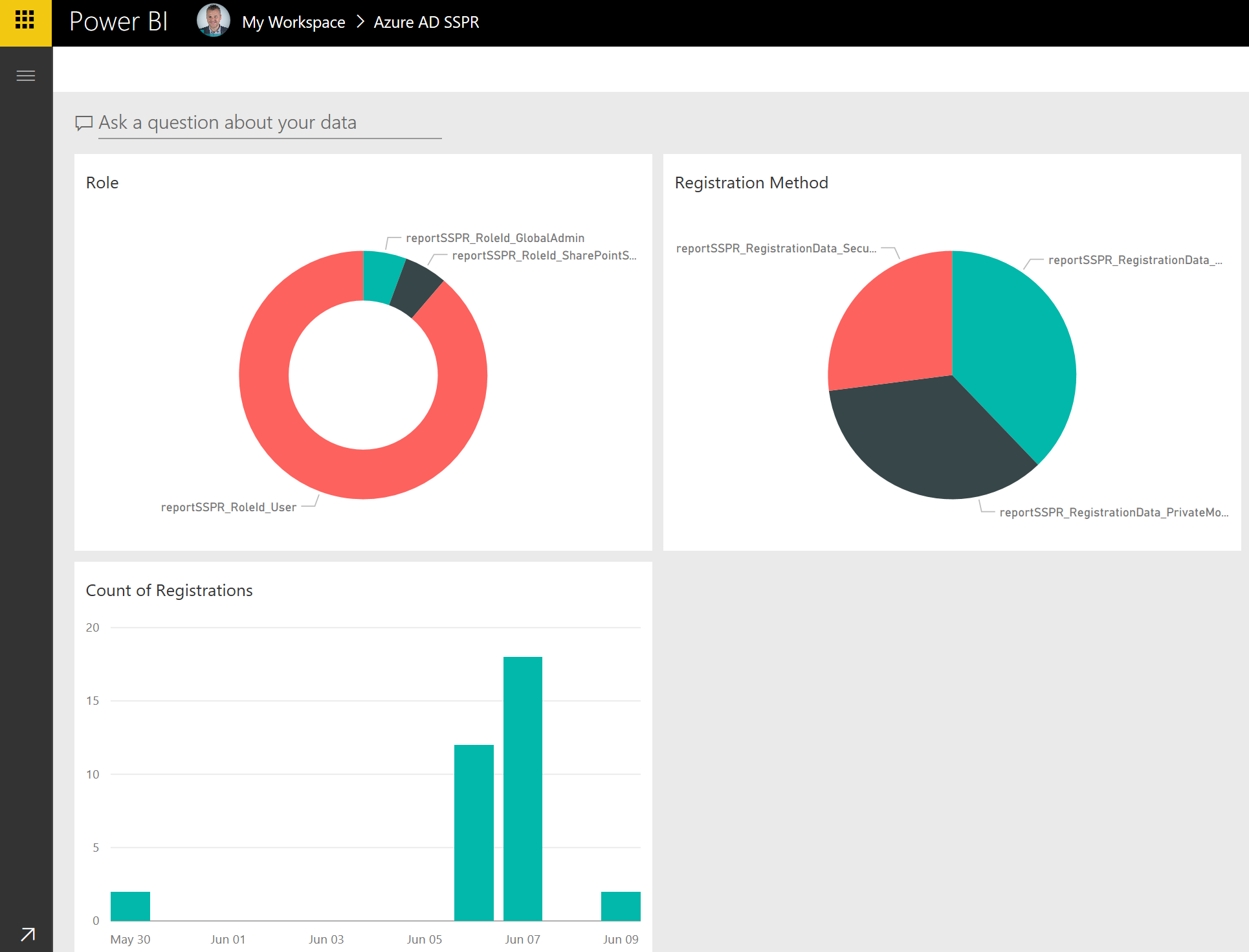

With that last export to a Csv file I can import it to Power BI as a table, and create a report and a dashboard on it, for example showing which password reset registration method the users configured, what user and role type did the registration and the count and date for the registrations:
In the session we also looked at the new Content Pack for Azure AD, showing sign-in and audit events, and also how you can get data from the Microsoft Graph API using a OData Feed:
I hope this scripts will be as useful for you as it is for me! Good luck with taking your management of Azure AD to the next level with Azure AD PowerShell and Graph APIs!
